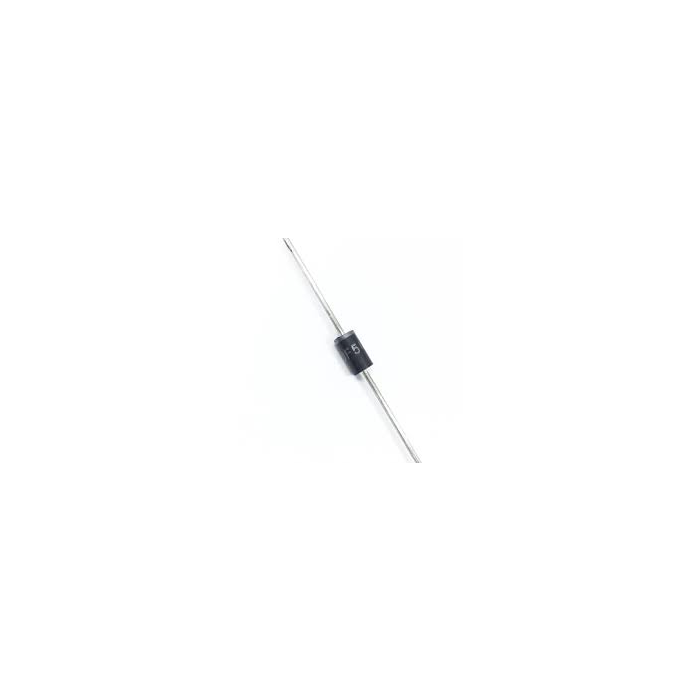

Fast Diode 3A 1000V 75NS DO27
Fast Diode 3A 1000V 75NS DO27:
The Fast Diode 3A 1000V is designed for high-speed switching applications, capable of handling a peak reverse voltage of 1000V and a forward current of 3A. With a reverse recovery time of just 75ns, it is ideal for use in circuits where fast response and efficient performance are critical, such as in power supplies, rectifiers, and high-frequency applications.
Specifications:
- Peak Inverse Voltage (PIV): 1000 V
- Average Forward Current (I_F(av)): 3 A
- Forward Voltage (V_F): 1.1 V (at I_F = 3 A)
- Reverse Recovery Time (t_rr): 75 ns
- Reverse Leakage Current (I_R): 5 µA (at V_R = 1000 V)
- Package Type: DO-27
- Operating Temperature Range: -65°C to 150°C
- Applications: Power supplies, rectification, high-frequency circuits, and motor drivers
