GT2 BELT 6MM 160

ZAR 44.85 ZAR 39.00

In stock

SKU

3DP-0328-DS1

Description:

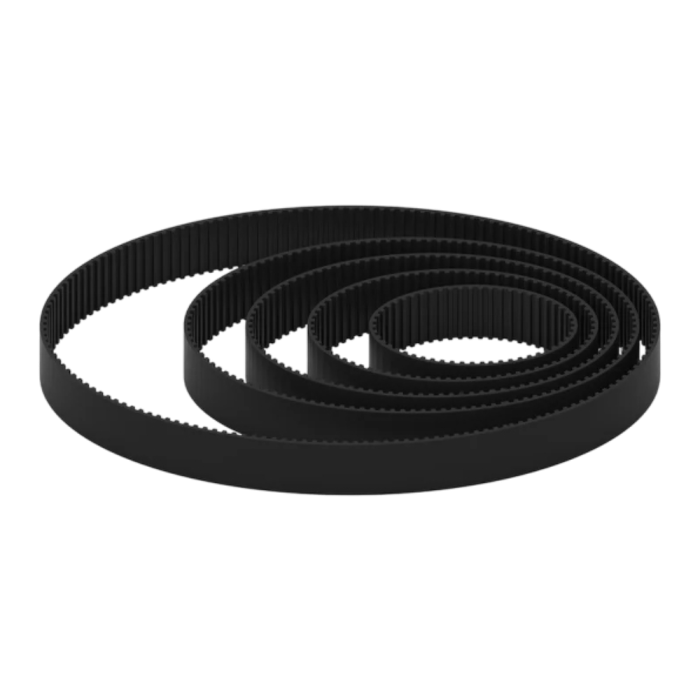

The GT2 160mm closed-loop timing belt (6mm wide) is a short, durable motion component ideal for compact mechanical systems. Its rounded tooth profile minimizes slippage and backlash, making it perfect for short-path applications such as Z-axis lifts, small gantry systems, or robotics joints. Despite its small size, the fiberglass-reinforced neoprene construction provides strength and durability under continuous use.

Features:

Type: GT2 closed-loop timing belt
Length: 160mm
Width: 6mm
Pitch: 2mm (distance between teeth)
Number of Teeth: 80
Tooth Profile: Rounded (optimized for GT2 pulleys, reduces backlash)
Material: Neoprene rubber with fiberglass reinforcement
Tooth Height: ~0.75mm
Profile Height: ~1.38mm
Color: Black
Applications:
- Compact 3D printers (short axis or Z-axis motion systems)
- CNC machines with limited travel distances
- Laser cutters with small frames
- Robotics and automation systems requiring very short closed-loop belts
