Specifications:

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax.
• Antennas: 1x 5GHz: maximum gain 3.4dBi.
• 2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz.
• Wi-Fi Data Rates:
• 5G:
• IEEE 802.11ax: 7.3 Mbps to 2402 Mbps.
• IEEE 802.11ac: 6.5 Mbps to 1732 Mbps.
• IEEE 802.11n: 6.5Mbps to 300Mbps.
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
• 2.4G:
• IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps.
• IEEE 802.11n: 6.5Mbps to 300Mbps.
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps.
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
• Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network.
• Frequency Bands: 2.4GHz radio: 2400-2483.5MHz.
• 5GHz radio: 5150-5895MHz.
• Not all frequency bands can be used in all regions.
• Channel Bandwidth: HT 20/40, VHT 20/40/80, HE 20/40/80/160.
• Security: WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI.
• MU-MIMO:
• 2×2: 2 2.4GHz.
• 3×3: 2 5GHz.
• Maximum TX Power:
• 2.4G: 24dBm.
• 5G: 26dBm.
• Maximum power varies by country, frequency band and MCS rate.
• Receiver Sensitivity:
• 2.4G:
• 802.11b: -96dBm@1Mbps, -88dBm@11Mbps.
• 802.11g: -93dBm@6Mbps, -75dBm@54Mbps.
• 802.11n 20MHz: -73dBm@MCS7.
• 802.11n 40MHz: -70dBm@MCS7.
• 802.11ax 20MHz: -60dBm@MCS11.
• 802.11ax 40MHz: -58dBm@MCS11.
• 5G:
• 802.11a: -92dBm@6Mbps, -74dBm@54Mbps.
• 802.11n 20MHz: -73dBm@MCS7.
• 802.11n 40MHz: -70dBm@MCS7.
• 802.11ac 20MHz: -67dBm@MCS8.
• 802.11ac 40MHz: -63dBm@MCS9.
• 802.11ac 80MHz: -59dBm@MCS9.
• 802.11ax 20MHz: -60dBm@MCS11.
• 802.11ax 40MHz: -58dBm@MCS11.
• 802.11ax 80MHz: -56dBm@MCS11.
• 802.11ax 160MHz: -52dBm@MCS11.
• SSIDs: 4 SSIDs total.
• Concurrent Wireless Clients: Up to 128 wireless clients.
• Networking Interfaces: 3x autosensing 10/100/1000Mbps Ethernet ports.
• Auxiliary Ports: 1x SYNC, 1x POWER, 1x RESET Pinhole.
• Mounting: Desktop or wall-mounting.
• LED: 1x tri-colour LED for device tracking and status indication.
• Network Protocols: IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP.
• QoS:
• Support 8 queues with multiple traffic priority and bandwidth.
• APP QoS.
• QoS rules.
• NAT: DDNS, Port Forwarding, DMZ, UPnP.
• VPN:
• Supports 1 VPN tunnel:
• L2TP Client.
• PPTP Client.
• IPSec Site-to-Site & Client-to-Site.
• OpenVPN® Server.
• WireGuard® Site-to-Site & Peer-to-Site.
• Networking Management:
• Embedded controller (can only manage itself).
• GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers.
• GWN Manager offers premise-based software controller.
• TR-069.
• Power and Green Energy Efficiency:
• USB Type-C power adapter included:
• Input: 100~240V 50/60Hz.
• Output: 5V/3A(15W).
• Environmental:
• Operation: 0°Cto 40°C, humidity: 10% to 90% RH (Non-condensing).
• Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing).
• Dimensions:
• Unit Dimensions: 140mm(L)*46mm(W)*90mm(H).
• Entire Package Dimensions: 176.5mm(L)*170mm(W)*72mm(H).
• Unit Weight:
• Unit Weight: 185g.
• Entire Package Weight: 465g.

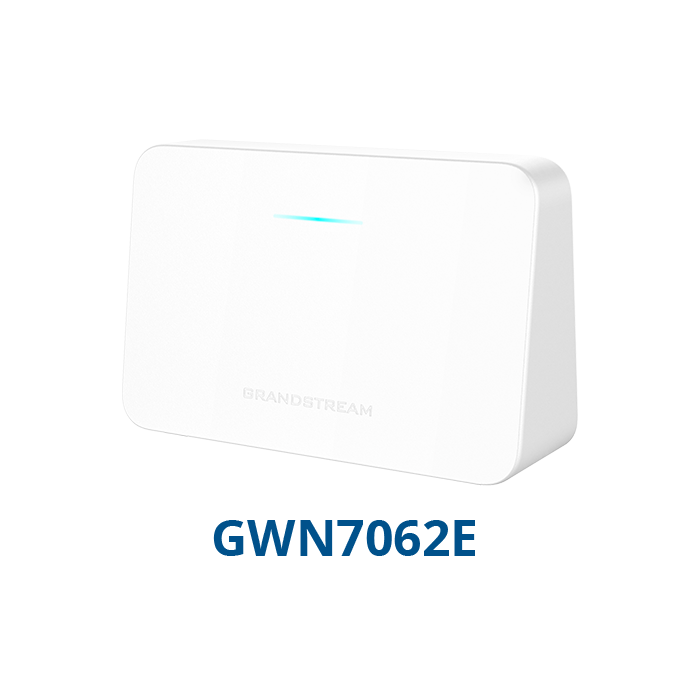

• Package Content: GWN7062E router, Power Adapter, Ethernet Cable, Quick Installation Guide.
• Compliance: FCC, CE, RCM, IC.
