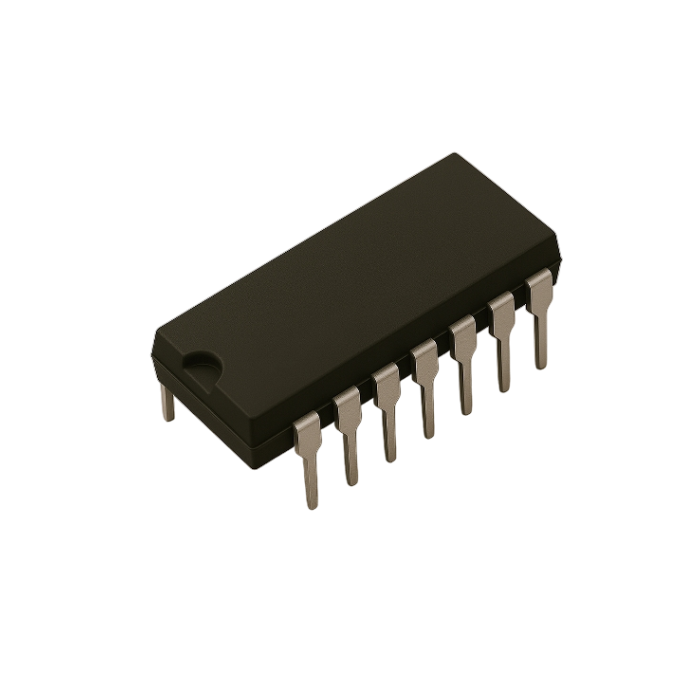

HD74LS04P Integrated Circuit 14Pin
Description:
The HD74LS04P is a classic hex inverter IC from the 74LS TTL logic family, manufactured by Hitachi (now Renesas). It contains six independent NOT gates, each performing a logic inversion, making it a staple in digital logic design.
Specifications:
- Function: Hex inverter (six NOT gates)
- Logic Family: 74LS (Low Power Schottky TTL)
- Supply Voltage: 4.5 V to 5.5 V (typically 5 V)
- Input Logic Levels:
-LOW: ≤ 0.8 V
-HIGH: ≥ 2.0 V - Output Drive:
-LOW: 8 mA
-HIGH: –0.4 mA - Propagation Delay: ~15 ns
- Package: 14-pin DIP
- Operating Temperature: –20°C to +75°C
| SKU | INC-0413-C09 |
|---|
