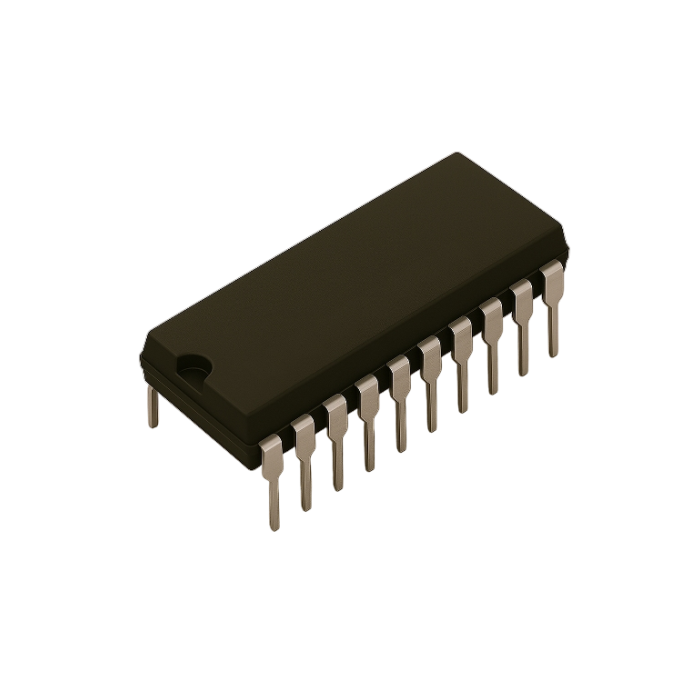

HD74LS245P Integrated Circuit 20Pin

ZAR 11.83 ZAR 10.29

In stock

SKU

INC-0412-C09

Description:

The HD74LS245P is a classic octal bus transceiver with three-state outputs, designed for bidirectional data communication between buses. Manufactured by Hitachi (and later Renesas), it’s part of the 74LS TTL logic family and was widely used in microprocessor systems for bus interfacing.

Specifications:

Function: Octal bus transceiver (bidirectional)
Data Lines: 8-bit (A bus ↔ B bus)
Control Inputs:
-DIR (Direction): Controls data flow direction
-G (Output Enable): Enables/disables outputs (active LOW)
Logic Family: 74LS (Low Power Schottky TTL)
Supply Voltage: 5 V ±5%
Output Type: 3-state TTL-compatible
Propagation Delay: ~12 ns
Package: 20-pin DIP (PDIP-20)
Operating Temperature: 0°C to +70°C
