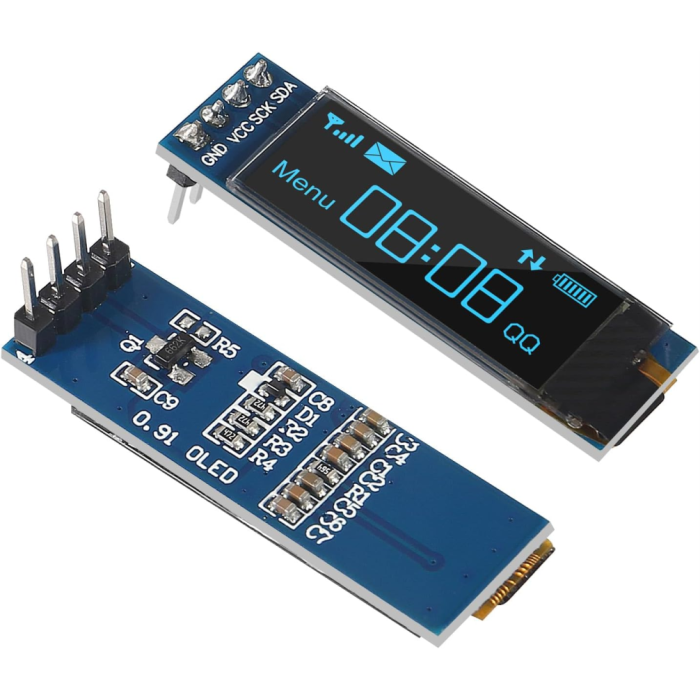

I2C Display Module 0.91 Inch I2C OLED Display Module I2C OLED Screen Driver DC 3.3V to 5V

ZAR 46.00 ZAR 40.00
Out of stock
SKU
ARD-0127-L03

Description:

  • The 0.91" I2C OLED Display Module is a high-contrast screen designed for microcontroller applications like Arduino, Raspberry Pi, and STM32.
  • It employs OLED technology, which means it generates its own light and does not require a backlight, resulting in clear visibility even in low-light circumstances.
  • This module has a 128×32 pixel resolution and communicates using the I2C interface, which only requires two signal lines (SDA and SCL).
  • It uses the SSD1306 driver IC, which is extensively supported by libraries such as Adafruit SSD1306.
  • It operates from 3.3V to 5V and is compatible with both 3.3V and 5V logic systems.

Specifications:

  • Display Size: 0.91-inch diagonal.
  • Resolution: 128 × 32 pixels.
  • Driver IC: SSD1306.
  • Interface: I2C (IIC).
  • Operating Voltage: 3.3V to 5V DC.
  • Display Colour: White, Yellow, or Sky Blue (varies by model).
  • Module Dimensions: 38.0 mm × 12.0 mm × 2.7 mm.
  • Viewing Area: 22.384 mm × 5.584 mm.
  • Operating Temperature: −40°C to +85°C.
  • Storage Temperature: −40°C to +85°C.
  • Display Mode: Passive Matrix OLED.
  • Structure: COG (Chip-on-Glass).
