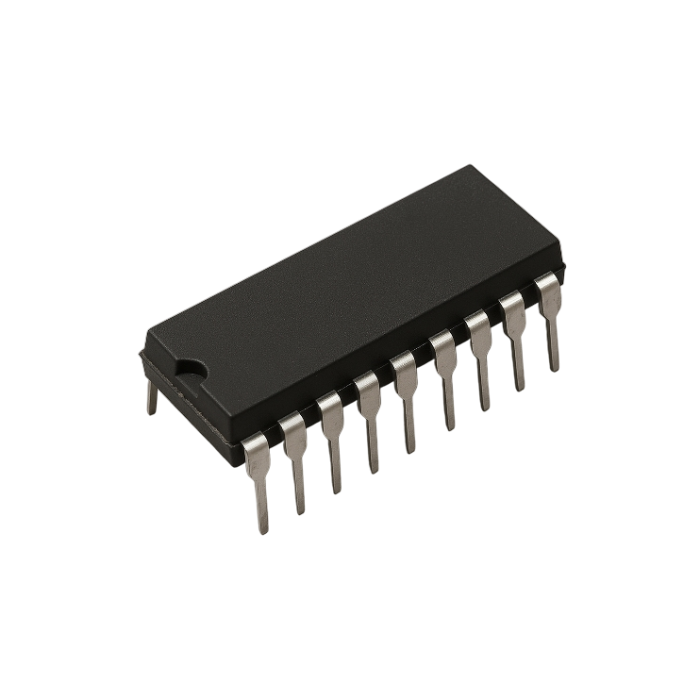

IMS 4416-15NL Integrated Circuit 18Pin

ZAR 230.69 ZAR 200.60

In stock

SKU

INC-0377-C09

Description:

The IMS 4416-15NL is a vintage 16K x 1-bit dynamic RAM (DRAM) chip, widely used in early computing systems, arcade machines, and embedded applications. It stores 16,384 bits of data organized as 16,384 words by 1 bit, and was often deployed in banks to form wider memory buses. This IC is functionally equivalent to the TMS4416 and compatible with other 4416-series DRAMs, making it a common replacement part in retro hardware restoration.

Specifications:

Function: 16,384-word × 1-bit dynamic RAM
Memory Type: NMOS DRAM
Organization: 16K x 1-bit
Access Time: 150 ns (–15 speed grade)
Package Type: 18-pin DIP (Dual In-line Package)
Mounting Type: Through-hole
Supply Voltage (V_CC): 5 V ±10%
Input/Output Levels: TTL-compatible
Control Signals: RAS (Row Address Strobe), CAS (Column Address Strobe), WE (Write Enable)
Refresh: 128-cycle, 2 ms
Power Dissipation: ~525 mW
Operating Temperature Range: 0°C to +70°C
