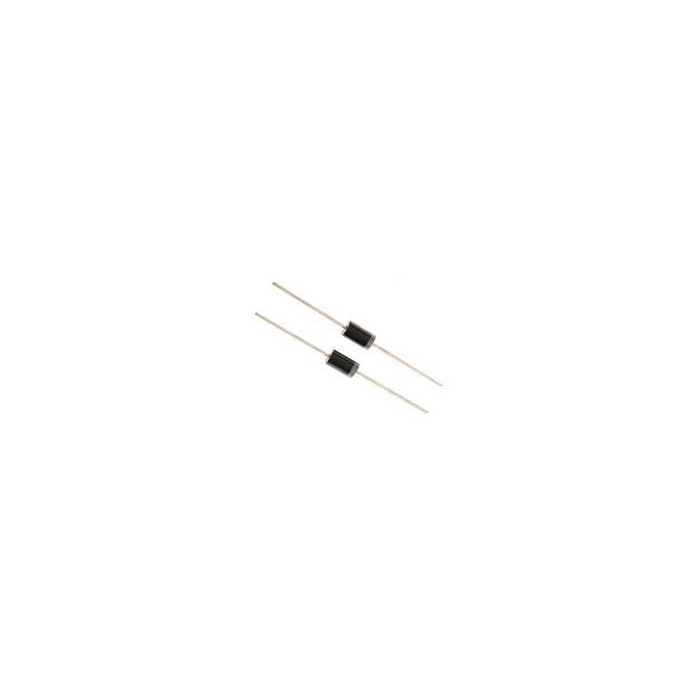

FR 104 Diode 1A 400V (10Pcs)
FR 104 Diode 1A 400V (10Pcs):
The FR104 diode is a general-purpose rectifier diode designed for low- to medium-power applications. With a maximum reverse voltage of 400V and a forward current rating of 1A, it is typically used in power supplies, rectification circuits, and protection circuits where reliable current conduction and voltage clamping are needed.
Specifications:
- Reverse Voltage (VR): 400V
- Forward Current (IF): 1A
- Forward Voltage Drop (VF): 1.1V at 1A
- Peak Reverse Current (IR): 5µA at 400V
- Package Type: DO-41 (Axial)
- Pins: 2
- Operating Temperature Range: -55°C to +150°C
- Polarity: Cathode marked with a band
