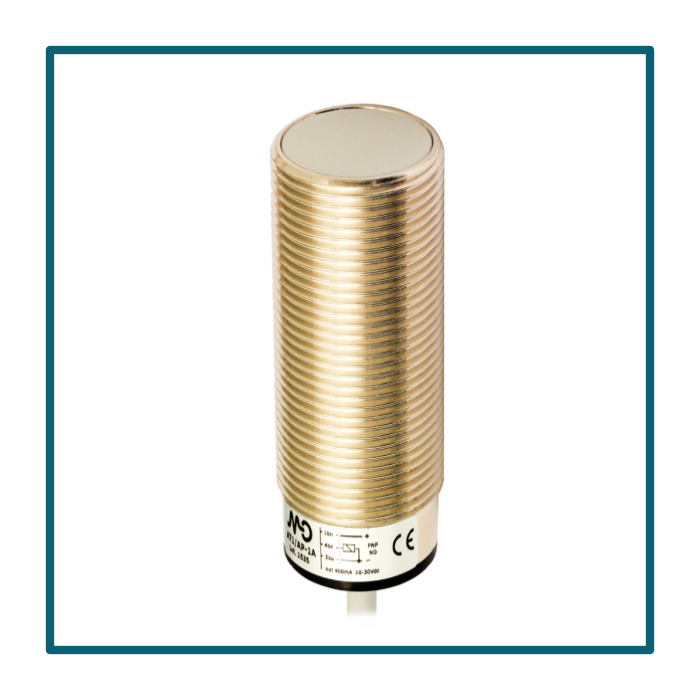

Inductive Sensor M30 Shielded NO/NPN Cable 2m Axial
Description:
- This sensor generates an electromagnetic field and detects disturbances caused by nearby metallic objects.
- When a metal target enters its sensing range, the sensor switches its output signal.
Specifications:
- Nominal sensing distance: 10mm.
- Operating distance: 0…8,1mm.
- Standard target: 30x30mm FE360.
- Correction Factor: copper: 0,35 / aluminum: 0,45 / brass: 0,50 / stainless steel: 0,75.
- Thermal drift of Sr: < 10%.
- Repeat Accuracy: < 5% (UB 24V Ta=23°C ±5°C).
- Hysteresis: 1 … 20%.
- Application:
- Description: M30 standard flush mount.
- Functions: Proximity.
- Outputs:
- Output type: NPN.
- Output Function: NO.
- Switching frequency: 200Hz.
- Operating Voltage: 10...30Vdc.
- Mounting: Shielded.
- Housing Material: Nickel-plated brass.
- Connections: 2m PVC Cable.
- Active Head Material: PBT.
- Tightening torque: 50Nm.
- Operating temperature: -25°C…+70°C.
- Material: Nickel-plated brass.
- Diameter/Dimension: M30.
| SKU | CNC-0050-P02 |
|---|
