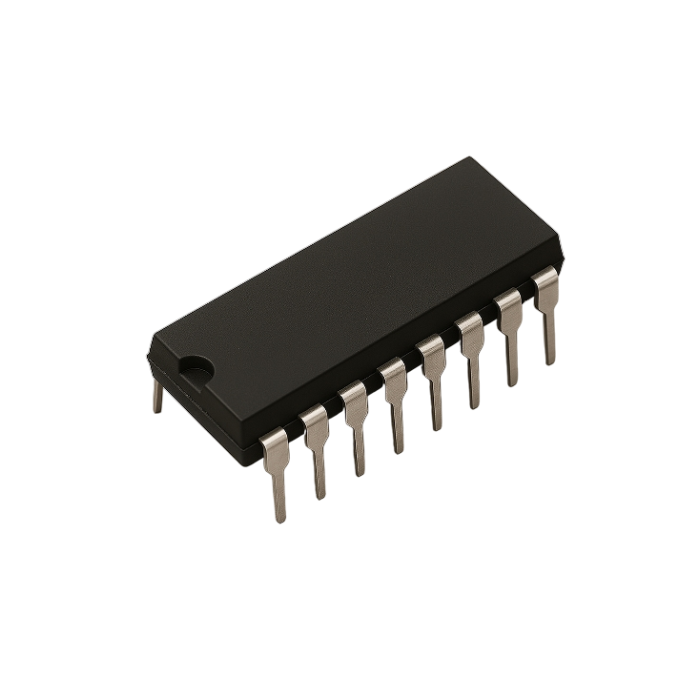

KA7500B Integrated Circuit 16Pin

ZAR 9.95 ZAR 8.65

In stock

SKU

INC-0334-C09

Description:

The KA7500B is a versatile PWM (Pulse Width Modulation) controller IC, widely used in switch-mode power supplies (SMPS), DC-DC converters, and other power regulation circuits. Originally developed by Fairchild Semiconductor (now part of ON Semiconductor), it integrates all the essential control circuitry for regulating power efficiently and reliably. Its internal architecture includes dual error amplifiers, a 5V reference, an oscillator, and output transistors—making it a self-contained solution for both push-pull and single-ended power topologies.

Specifications:

Function: PWM controller for SMPS and DC-DC converters
Package: 16-pin DIP (Dual In-line Package)
Supply Voltage Range: 7V to 42V
Reference Voltage: 5V ±5% (internally regulated)
Oscillator Frequency Range: 1kHz to 300kHz
Output Current: Up to 200mA (sink or source)
Output Configuration: Push-pull or single-ended
Dead Time Control: Adjustable via Pin 4
Internal Features:
-Two error amplifiers
-PWM comparator
-Flip-flop for output control
-On-chip oscillator
-Double-pulse suppression
Operating Temperature: 0°C to +70°C (commercial grade)
Applications:
-Switching regulators
-Inverters
-Battery chargers
-Motor controllers
