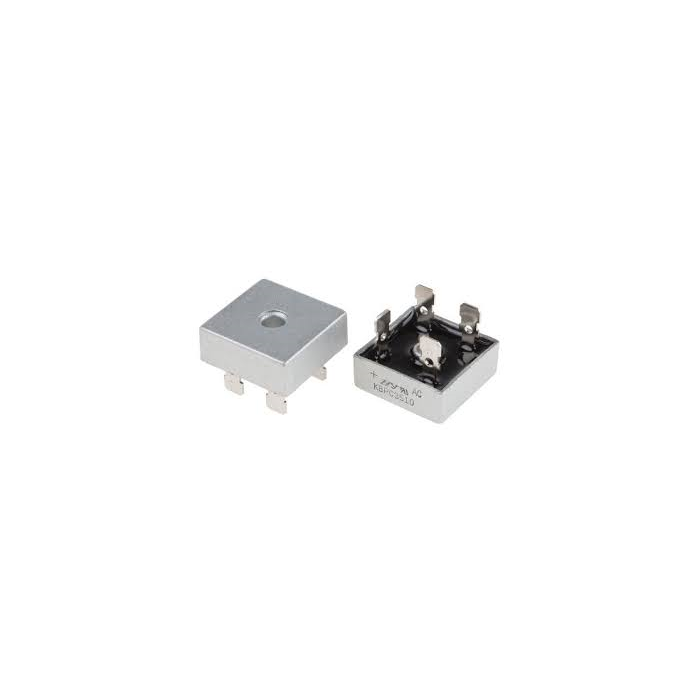

KBPC3510, Bridge Rectifier, 35A 1000V, 4 -Pin KBPC
KBPC3510, Bridge Rectifier, 35A 1000V, 4 -Pin KBPC:
The KBPC3510 is a high-current, high-voltage bridge rectifier designed for AC-to-DC conversion in industrial power supplies, motor drives, and large battery chargers. Its rugged KBPC package allows for easy heat dissipation and efficient performance in demanding applications.
Specifications:
- Maximum Repetitive Reverse Voltage (VRRM): 1000V
- Average Forward Current (IF(AV)): 35A
- Surge Forward Current (IFSM): 400A (8.3 ms single half sine wave)
- Forward Voltage Drop (VF): 1.1V per diode at 35A
- Reverse Current (IR): 10 µA at 1000V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package Type: KBPC, 4-pin
| SKU | REC-0005-D08 |
|---|
