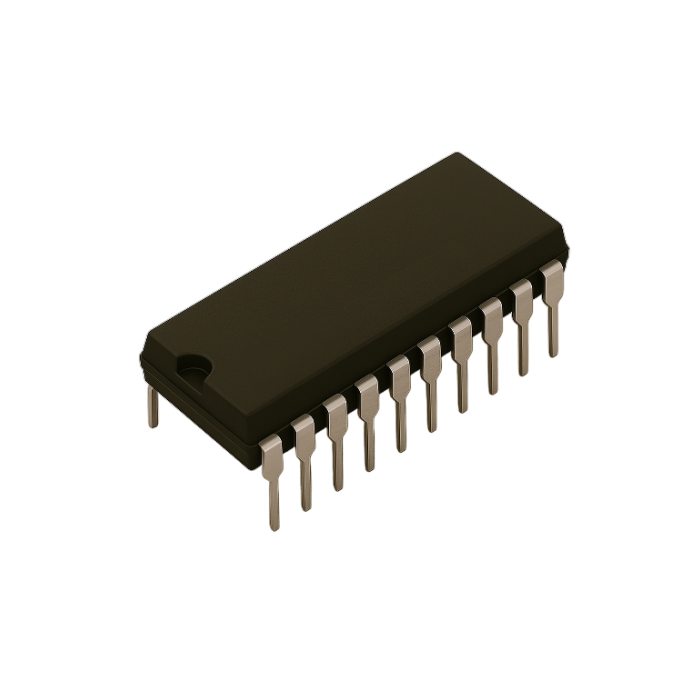

KS74HCTLS244N Integrated Circuit 20Pin

ZAR 34.70 ZAR 30.17

In stock

SKU

INC-0338-C09

Description:

The KS74HCTLS244N is a CMOS octal buffer/line driver IC from Samsung, designed for high-speed memory interfacing and bus driving applications. It belongs to the HCT (High-speed CMOS with TTL compatibility) logic family and features two sets of four non-inverting buffers with 3-state outputs. This makes it ideal for driving data buses in microprocessor systems, especially where low power and high noise immunity are important.

Specifications:

Function: Octal buffer/line driver with 3-state outputs
Logic Family: HCTLS (High-speed CMOS, TTL-compatible)
Package: 20-pin PDIP (Plastic Dual In-line Package)
Number of Channels: 8 (organized as two 4-bit buffers)
Output Type: True output, 3-state
Supply Voltage: 4.5V to 5.5V (typically 5V)
Input Compatibility: TTL-level inputs
Output Drive: Capable of sourcing/sinking standard TTL loads
Enable Control: Two active-low enable inputs for independent control of each 4-bit section
Temperature Range: 0°C to +70°C (commercial grade)
Applications:
-Bus interfacing
-Memory address buffering
-Signal isolation
-Microprocessor system expansion
