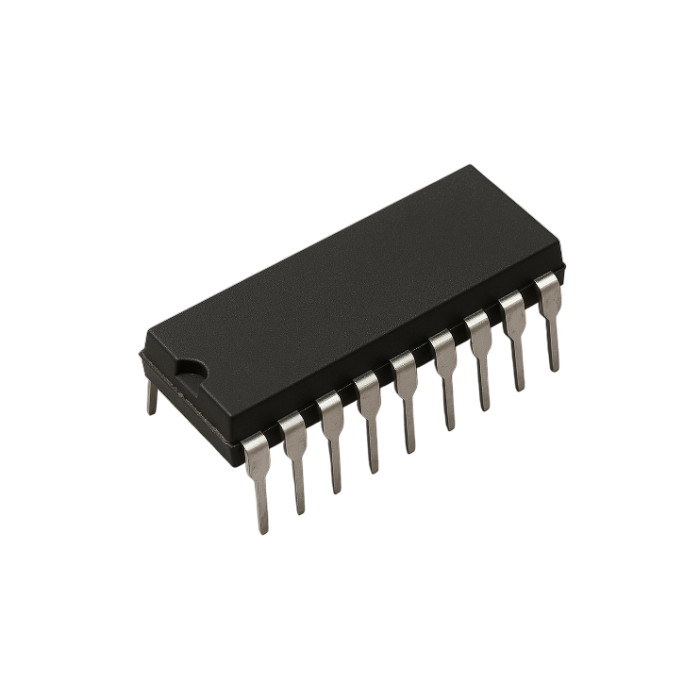

L601C Integrated Circuit 18Pin

ZAR 17.72 ZAR 15.41

In stock

SKU

INC-0415-C09

Description:

The L601C is a vintage Darlington transistor array developed by STMicroelectronics, designed for high-voltage, high-current switching applications. It contains eight open-collector Darlington pairs with common emitters, making it ideal for driving inductive loads like relays, solenoids, motors, and lamps.

Specifications:

Configuration: 8 Darlington pairs per package
Output Current: 400 mA per channel (500 mA peak)
Output Voltage: Up to 90 V
Input Compatibility: TTL, CMOS, PMOS, DTL
Integrated Features:
-Clamp diodes for inductive load protection
-Inputs pinned opposite outputs for easy PCB layout
Package: 18-pin DIP
Applications: Relay drivers, LED displays, thermal printheads, stepper motors
