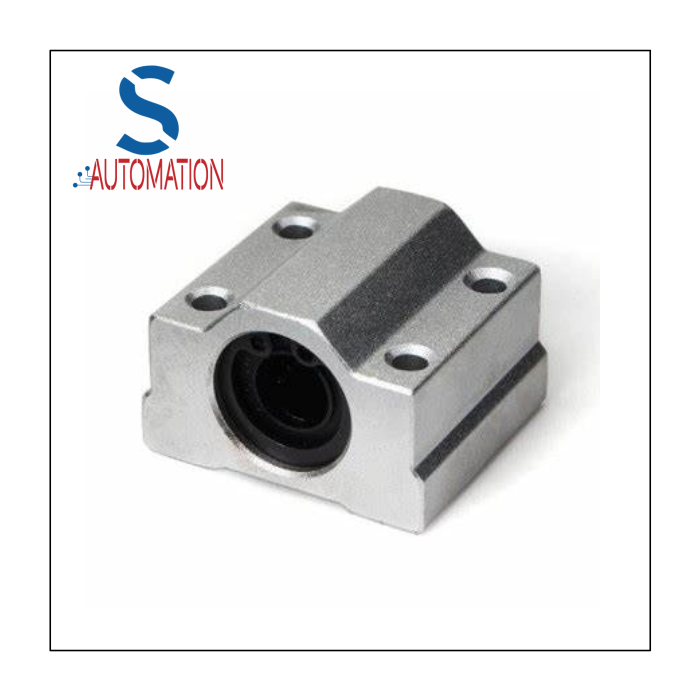

Linear Motion Ball Bearings Slide Block (SC10UU)

ZAR 57.44 ZAR 49.95

In stock

SKU

3DP-0084-P01

Linear Motion Ball Bearings Slide Block (SC10UU):

This SC10UU 10mm linear bearing, contained in a sturdy aluminium pillow block mount, is the ideal choice if you're building a CNC router, mill, or lathe that needs precise linear motion.
With four M4 CNC drilled, tapped, and countersunk holes, the 40 x 35 mm aluminium housing block may be mounted to almost anything with ease and security.
The aluminium casing of the SC10UU unit holds the LM10UU linear bearing in place with two circlips.
To shield the ball bearings from debris and pollution, there are two rubber seals on each end.

Mounting holes: 2 holes for mounting the block to a rail (usually 5mm in diameter)
Material: Typically made from aluminum for the outer casing and steel or chrome steel for the balls.
Type: Linear bearing slide block with ball bearings for smooth motion along a linear rail.
Ball Configuration: Uses ball bearings arranged in a circular path for low friction and high precision.
Lubrication: Usually pre-lubricated; requires periodic maintenance to maintain smooth operation.
Load Capacity: Suitable for medium-load applications, designed to provide smooth, low-friction motion.
Compatibility: Designed to fit 10mm diameter linear rails (commonly used in 3D printers, CNC machines, and other motion systems).
Seals: Features sealed sides (UU) to protect against dust and contaminants, enhancing longevity and reducing maintenance.
Operating Temperature: Operates within a range of -20°C to 100°C.
Common Use: Often used in 3D printers, CNC machines, and automated equipment for precise and smooth linear motion along rails.
