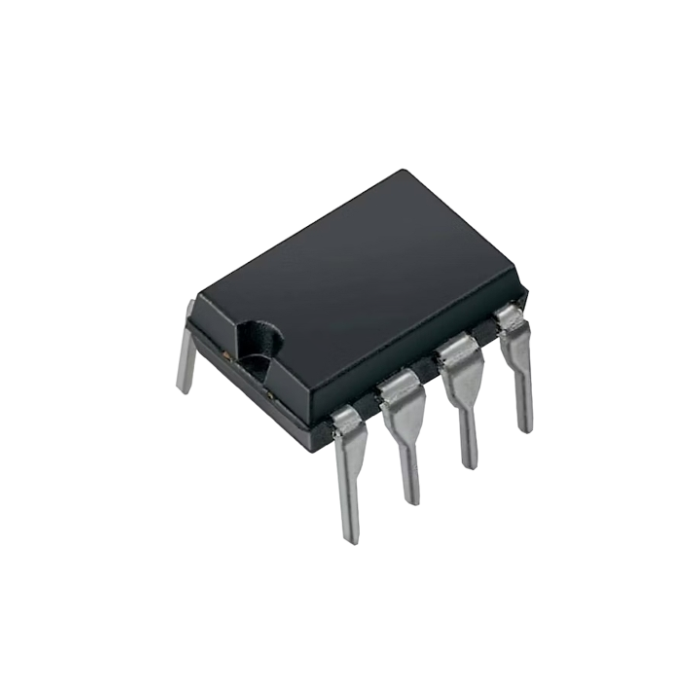

LM311ND Integrated Circuit 8PIN
Description:
The LM311ND is a high-speed voltage comparator designed for precision signal detection and threshold monitoring. It features an open-collector and open-emitter output, allowing flexible interfacing with various logic circuits. This IC is commonly used in oscillators, peak detectors, and control systems.
Specifications:
- Number of Pins: 8
- Supply Voltage Range: 5V to 30V (single supply) or ±15V (dual supply)
- Response Time: 200ns
- Input Voltage Range: -0.3V to Vcc - 1.5V
- Maximum Output Current: 50mA
- Input Bias Current: 250nA
- Operating Temperature Range: -25°C to +85°C
| SKU | INC-0264-C09 |
|---|
