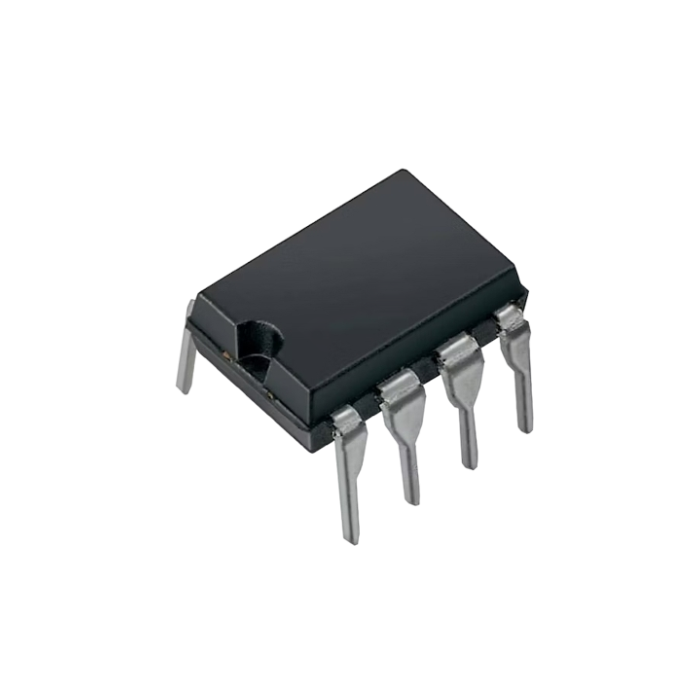

LM741CN Integrated Circuit 8Pin

ZAR 8.46 ZAR 7.36

In stock

SKU

INC-0345-C09

Description:

The LM741CN is a classic general-purpose operational amplifier (op-amp), widely used in analog signal processing. It’s known for its reliability, ease of use, and compatibility with a broad range of analog applications—from amplifiers and filters to integrators and comparators. Designed as a direct plug-in replacement for older op-amps like the 709C and LM201, it features internal frequency compensation and robust protection mechanisms, making it nearly foolproof in most designs.

Specifications:

Function: General-purpose operational amplifier
Package: 8-pin DIP (Dual In-line Package)
Supply Voltage Range: ±10V to ±22V (typical ±15V)
Input Offset Voltage: Typically 2mV
Input Bias Current: ~80nA
Gain Bandwidth Product: ~1 MHz
Slew Rate: ~0.5 V/µs
Output Voltage Swing: ±12V (typical with ±15V supply)
Short-Circuit Protection: Yes
Internal Frequency Compensation: Yes
Operating Temperature: 0°C to +70°C (commercial grade)
Applications:
-Signal amplification
-Active filters
-Integrators and differentiators
-Voltage followers
-Analog computation
