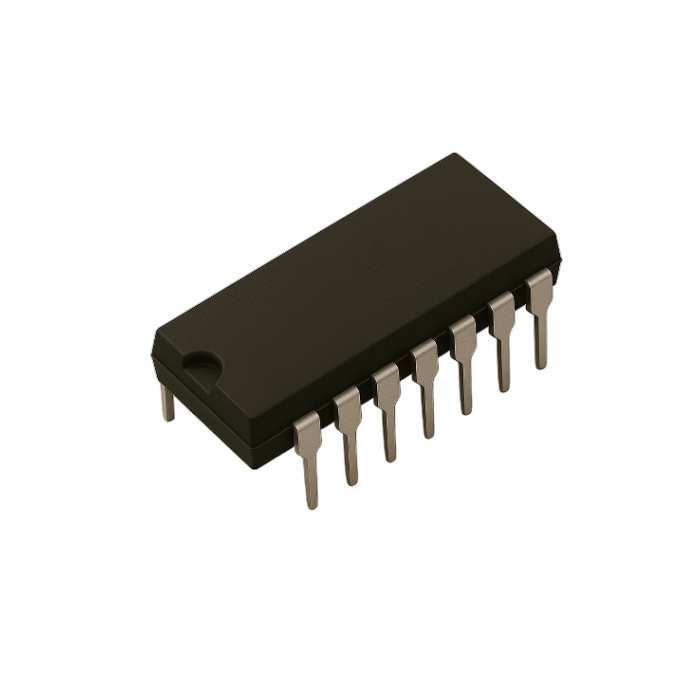

MB74LS00 Integrated Circuit 14Pin
Description:
The MB74LS00 is Fujitsu’s version of the classic 74LS00 quad 2-input NAND gate IC, part of the 7400-series TTL logic family. It contains four independent NAND gates, each with two inputs, making it a fundamental building block in digital electronics.
Specifications:
- Function: Quad 2-input NAND gate
- Logic Family: 74LS (Low Power Schottky TTL)
- Supply Voltage: 5 V ±5%
- Input Logic Levels:
-Low: ≤ 0.8 V
-High: ≥ 2.0 V - Output Drive:
-LOW: 8 mA
-HIGH: –0.4 mA - Propagation Delay: ~10 ns
- Package: 14-pin DIP
- Operating Temperature: 0°C to +70°C
| SKU | INC-0397-C09 |
|---|
