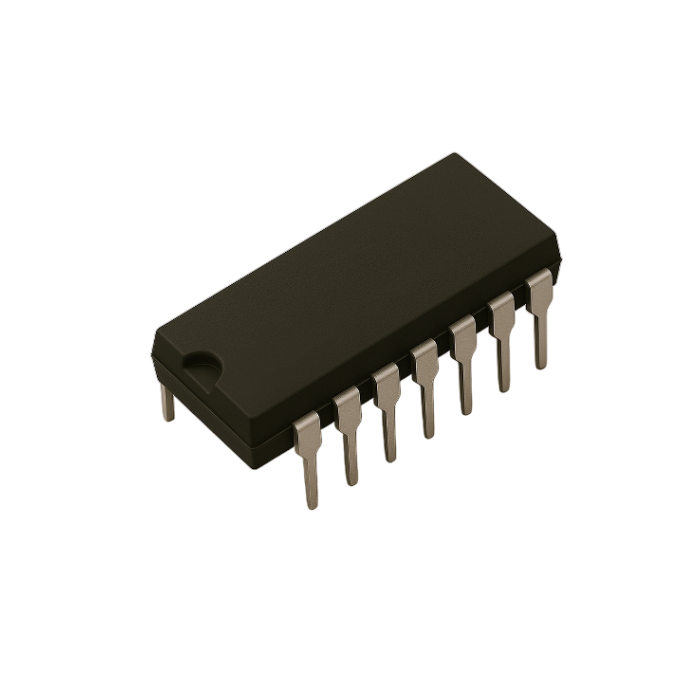

MC 1488 Integrated Circuit 14Pin

ZAR 20.56 ZAR 17.88

In stock

SKU

INC-0337-C09

Description:

The MC1488 is a classic quad line driver IC designed to meet the EIA-232D (RS-232) standard for serial communication. It’s used to convert TTL logic levels to RS-232 voltage levels, making it a key component in interfacing microcontrollers or digital systems with serial ports. Each of its four drivers can handle bipolar output swings, making it ideal for driving long cables or noisy environments.

Specifications:

Function: Quad RS-232 line driver
Package: 14-pin DIP (Dual In-line Package)
Logic Compatibility: TTL and DTL
Output Voltage Swing: ±9V to ±13.2V
Output Current: ±10mA (current-limited)
Power Supply: Dual ±9V to ±15V
Slew Rate Control: External capacitor for adjustable slew rate
Power-Off Output Impedance: ≥300Ω
Operating Temperature: 0°C to +75°C (commercial grade)
Applications:
-RS-232 serial communication
-Data terminal to modem interfaces
-Legacy PC serial ports
-Industrial control systems
