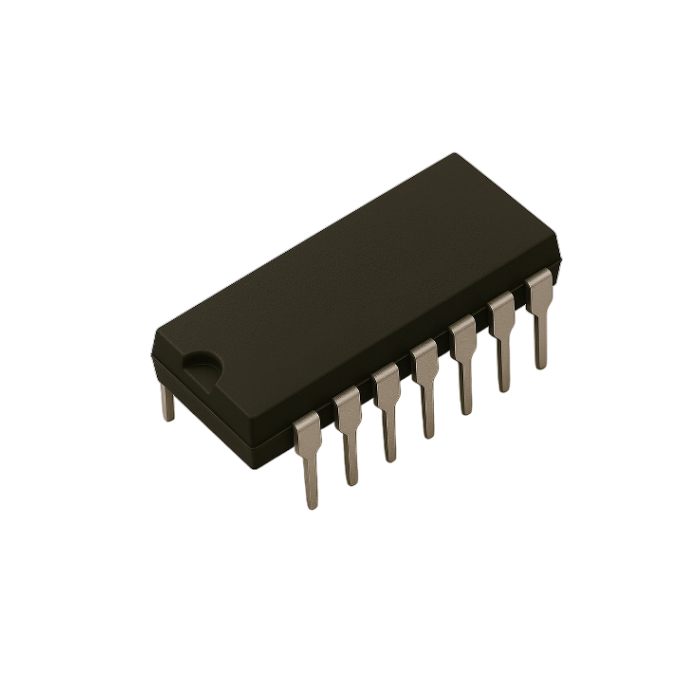

MC14077B Quad Exclusive NOR Gate Integrated Circuit 14PIN
Description:
The MC14077B is a quad exclusive NOR gate designed for digital logic applications requiring high noise immunity and low power dissipation. It features four independent NOR gates, each performing the exclusive NOR function, making it useful for error detection, parity checking, and signal processing.
Specifications:
- Number of Gates: 4
- Supply Voltage Range: 3V to 18V DC
- Propagation Delay: 150ns
- Current Consumption: Low power CMOS design
- Input Logic Levels:
Low: 0.9V max
High: 2V min - Output Drive Capability: Standard CMOS output
- Operating Temperature Range: -55°C to +125°C
| SKU | INC-0279-C09 |
|---|
