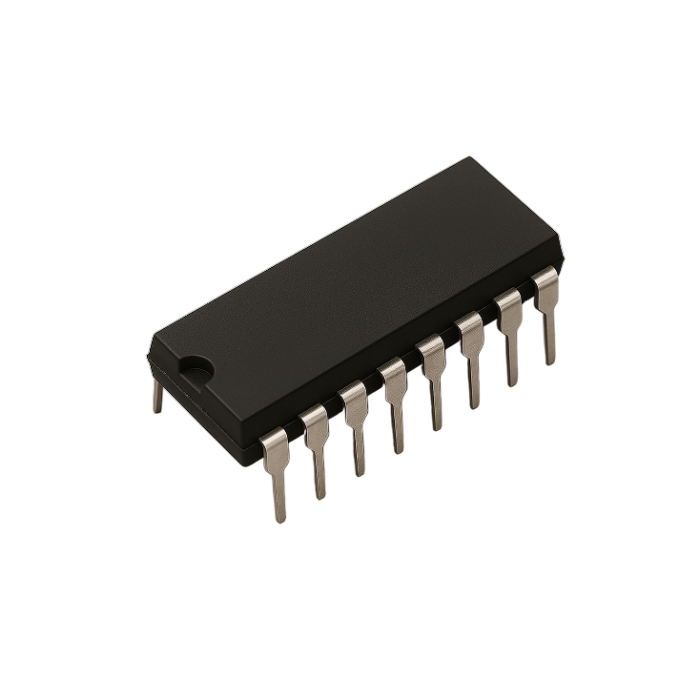

MC14503BCP HEX Non-Inverting 3-State Buffer/line Driver Integrated Circuit 16PIN
Description:
The MC14503BCP is a hex non-inverting 3-state buffer/line driver designed for bus interfacing and signal isolation in digital logic applications. It features six independent buffers with high current source and sink capability, making it useful for data transmission and control systems.
Specifications:
- Supply Voltage Range: 3V to 18V DC
- Output Type: 3-State (High-Impedance Mode)
- Current Drive Capability: ±25mA
- Propagation Delay: 150ns at 5V, 70ns at 10V, 50ns at 15V
- Disable Controls: Two independent disable inputs for selective output control
- Operating Temperature Range: -55°C to +125°C
| SKU | INC-0268-C09 |
|---|
