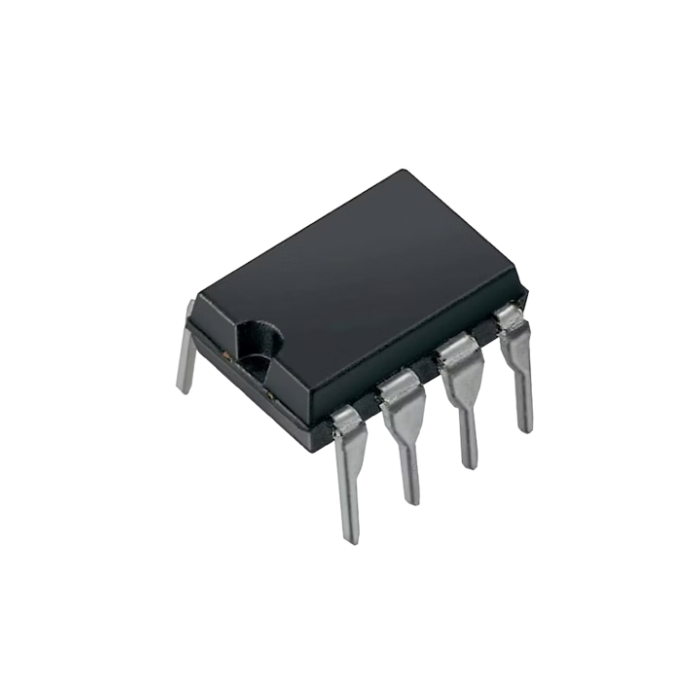

MC1458 Integrated Circuit 8Pin
Description:
The MC1458 is a classic dual general-purpose operational amplifier (op-amp), originally developed by Motorola and still widely recognized in analog circuit design. It’s essentially two μA741-type op-amps in a single 8-pin DIP package, making it a go-to choice for analog signal processing tasks.
Specifications:
- Function: Dual op-amp
- Architecture: Internally frequency-compensated
- Supply Voltage Range: ±3 V to ±15 V (or 6 V to 30 V single supply)
- Input Offset Voltage:2 mV (max 6 mV)
- Input Bias Current: ~200 nA
- Gain Bandwidth Product: ~1 MHz
- Slew Rate: ~0.5 V/μs
- Output Voltage Swing: ±12 V (with ±15 V supply)
- Short-Circuit Protection: Yes
- Package: 8-pin DIP
- Operating Temperature: 0°C to +70°C
| SKU | INC-0416-C09 |
|---|
