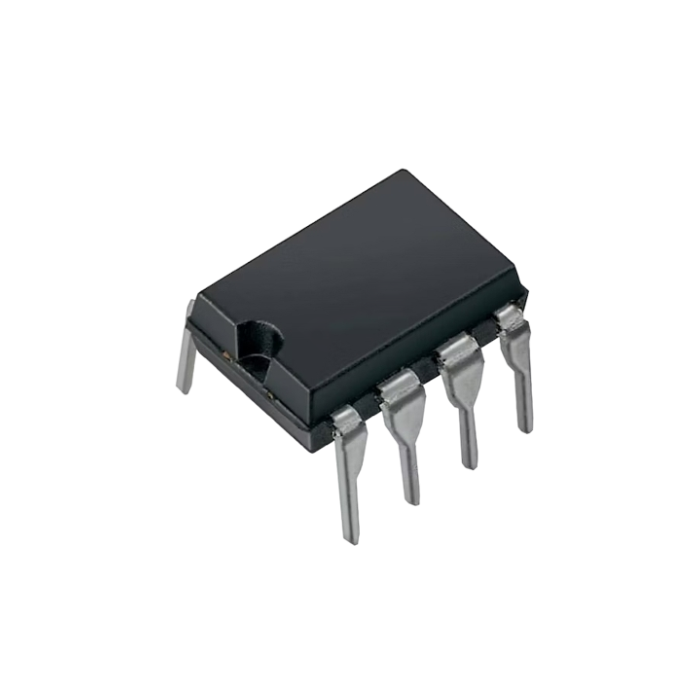

MC4558CP1 Integrated Circuit 8PIN
Description:
The MC4558CP1 is a dual wide-bandwidth operational amplifier designed for high-performance analog signal processing. It combines the features of the MC1458 while offering three times the unity gain bandwidth, making it ideal for audio applications, signal conditioning, and control systems.
Specifications:
- Function: Dual Operational Amplifier
- Number of Pins: 8
- Supply Voltage Range: ±2V to ±20V DC
- Unity Gain Bandwidth: 2.5 MHz (MC4558AC), 2.0 MHz (MC4558C)
- Input Offset Voltage: 5mV
- Input Bias Current: 50nA
- Large Signal Voltage Gain: 50 V/mV
- Output Short-Circuit Protection: Yes
- Power Consumption: Low power design
- Operating Temperature Range: 0°C to 70°C
| SKU | INC-0281-C09 |
|---|
