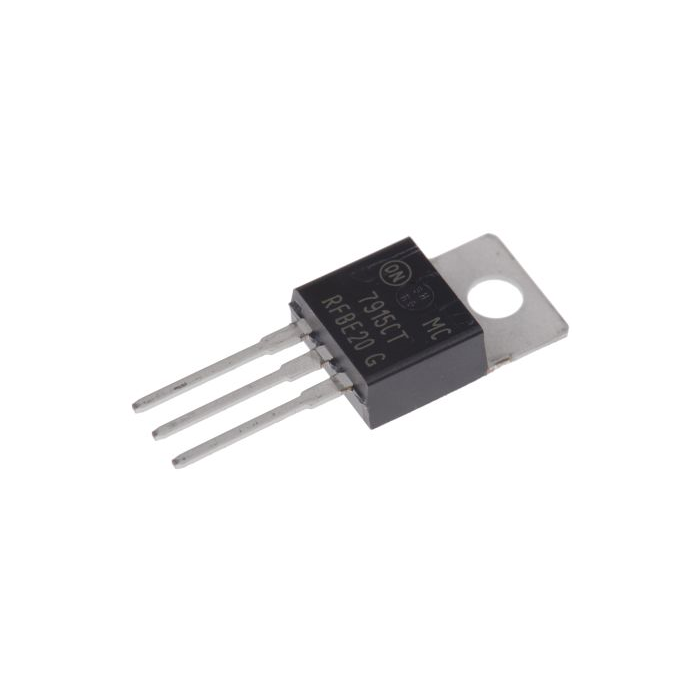

MC7915CTG Negative Voltage Regulator, 1A, -15 V, ‚±4% 3-Pin, TO-220
Output Voltage:-15 V
Maximum Output Current:1A
Maximum Input Voltage:-35 V
Minimum Operating Temperature:0 ‚°C
Maximum Operating Temperature:+125 ‚°C
Typical Dropout Voltage @ Current:1.3 V @ 1 A
Maximum Output Current:1A
Maximum Input Voltage:-35 V
Minimum Operating Temperature:0 ‚°C
Maximum Operating Temperature:+125 ‚°C
Typical Dropout Voltage @ Current:1.3 V @ 1 A
The MC7900 series of fixed output negative voltage regulators are
intended as complements to the popular MC7800 series devices.
These negative regulators are available in the same sevenËvoltage
options as the MC7800 devices. In addition, one extra voltage option
commonly employed in MECL systems is also available in the
negative MC7900 series.
Available in fixed output voltage options from Ë5.0 V to Ë24 V,
these regulators employ current limiting, thermal shutdown, and
safeËarea compensation Ë making them remarkably rugged under
most operating conditions. With adequate heatsinking they can deliver
output currents in excess of 1.0 A.
‚ No External Components Required
‚ Internal Thermal Overload Protection
‚ Internal Short Circuit Current Limiting
‚ Output Transistor SafeËArea Compensation
‚ Available in 2% Voltage Tolerance (See Ordering Information)
‚ PbËFree Package May be Available. The GËSuffix Denotes a
PbËFree Lead Finish
