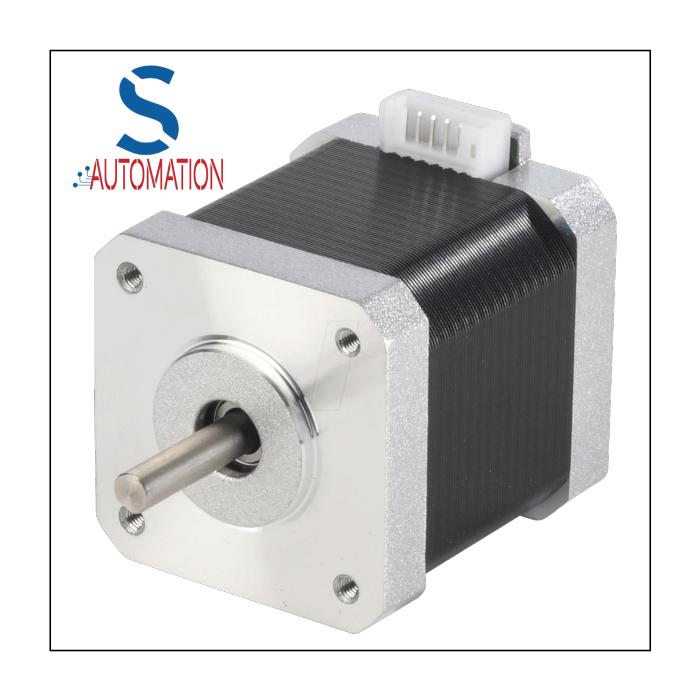

Nema 17 PHB42S63 Hybrid Stepper Motor 2 Phase 63mm

Nema 17 1.8‚ 63mm

Arriving soon. Add to wish list to be notify when available

Specifications:

• Step Angle 1.8‚
• Step Angle Accuracy ‚±5% (full Step, no load)
• 200 steps per revolution (1.8 deg/step)
• 2 Phase bipolar 4 wire
• Rated Currant 2.3A/Ëœ
• Phase Resistance 1.5 Ohm ‚±10% (20^oC)
• Phase inductions 2.2mH ‚±20% (1kHz 1V rms)
• Holding torque 80N,cm Min. (4kg/cm torque)
• Temperature Rise 80^oC Max (rated current 2 phase on)

Dimensions:

• Shaft diameter 5mm/0.88‚ (3/16‚)
• Shaft length 22mm
• Motor depth 63mm
