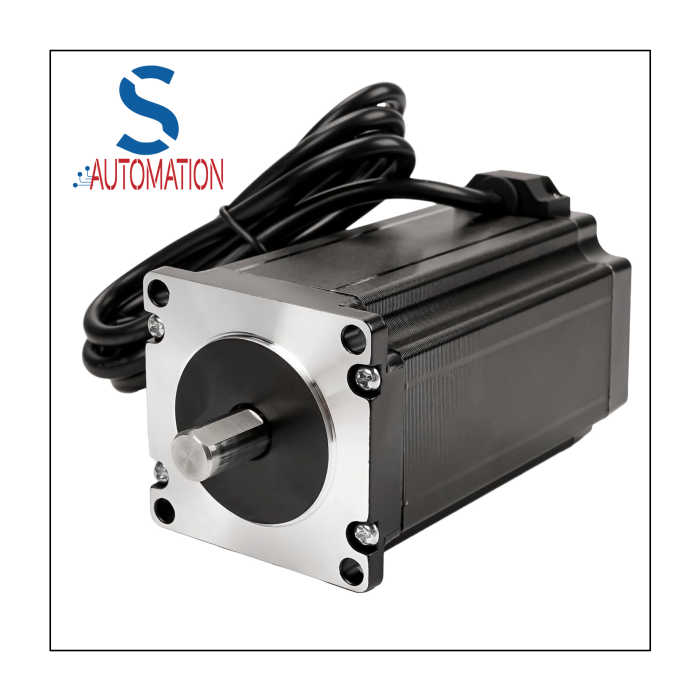

Nema 23 PHB57S112 Hybrid Stepper Motor 2 Phase 112mm
PHB57S NEMA 23 1.8°:
- PrimoPal Motor specializes in development, production and selling of various high-quality precision motor and motion control products, including stepper motors, brushless DC motor, servo systems, Linear actuators, linear guide, Linear module, electric cylinder, PM DC motors, spindle motors, AC induction motors, geared motors, drives, controllers, and so on.
Key Features:
- High Torque
- Smooth Movement
- High Speed
Features:
- Step Angle: 1.8°
- Step Angle Accuracy: ±5% (full step, no load)
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Temperature Rise: 80 °C Max.(rated current, 2 phase on)
- Ambient Temperature: -20 °C ~ +50 °C
- Insulation Resistance: 100 MΩ Min., 500VDC
- Dielectric Strength: 500 VAC for one minute
- Shaft Radial Play: 0.02 Max. (450 g-load)
- Shaft Axial Play: 0.08 Max. (450 g-load)
Specifications:
- Holding Torque: 280 N.cm 392 oz-in
- Detent Torque: 12 N.cm 16.8 oz-in
- Rotor Inertia: 800 g.cm² 4.400 oz-in²
Step Angle | 1.8 |
---|---|
Steps / Revolution | 200 |
