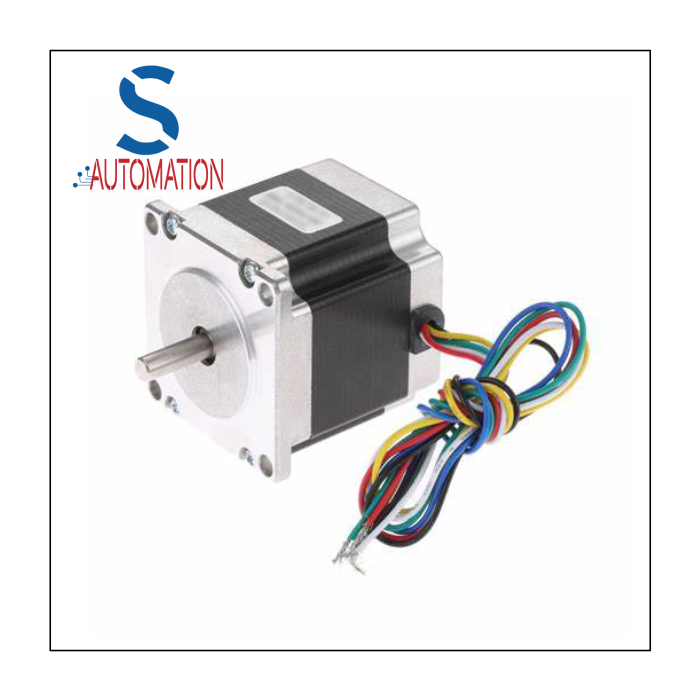

Nema 23 PHB57S41 Hybrid Stepper Motor 2 Phase 41mm

Nema 231.8‚ 41mm

Arriving soon. Add to wish list to be notify when available

Specifications:

• Step Angle 1.8‚
• Step Angle Accuracy ‚±5% (full Step, no load)
• 200 steps per revolution (1.8 deg/step)
• 2 Phase bipolar 4 wire
• Rated Currant 0.62A/Ëœ
• Phase Resistance 12Ohm ‚±10% (20^oC)
• Phase inductions 24mH ‚±20% (1kHz 1V rms)
• Holding torque 55 N,cm Min. (4kg/cm torque)
• Temperature Rise 80^oC Max (rated current 2 phase on)

Dimensions:

• Shaft diameter 5mm/0.88‚ (3/16‚)
• Shaft length 22mm
• Motor depth 41 mm
