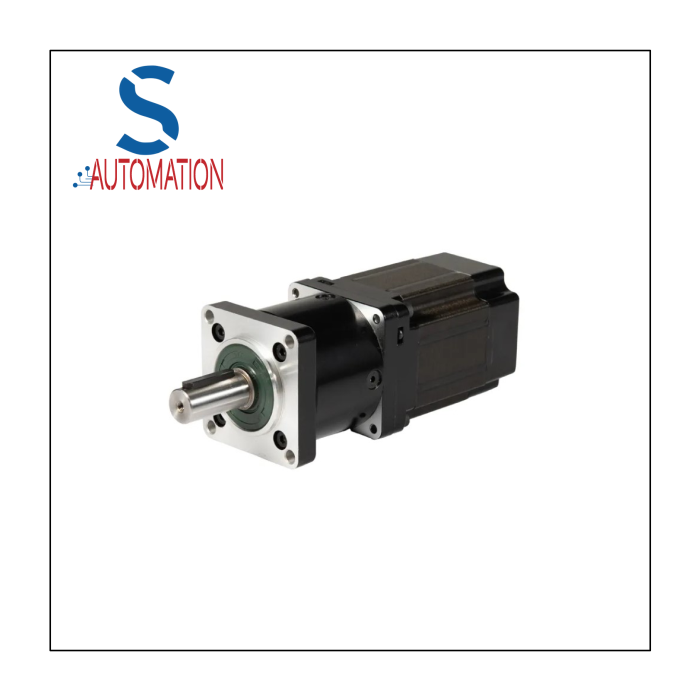

Nema 23 PHG57S56-430-PR10 Geared Stepper Motor 2 Phase 57mm 10:1

ZAR 2,046.44 ZAR 1,779.51
In stock
SKU
MOT-0030-Q01

Nema 231.8‚ 57mmStepper Motor With 57mm Gearhead 10:1

Arriving soon. Add to wish list to be notify when available

Specifications:

  • Step Angle 1.8‚
  • Step Angle Accuracy ‚±5% (full Step, no load)
  • 200 steps per revolution (1.8 deg/step)
  • 2 Phase bipolar 4 wire
  • Rated Currant 3.0A/Ëœ
  • Phase Resistance 0.8 Ohm ‚±10% (20oC)
  • Phase inductions 2.4mH ‚±20% (1kHz 1V rms)
  • Holding torque 110N.cm Min. (4kg/cm torque)
  • Temperature Rise 80oC Max (rated current 2 phase on)

Dimensions:

  • Shaft length 20mm
  • Motor depth 132mm
