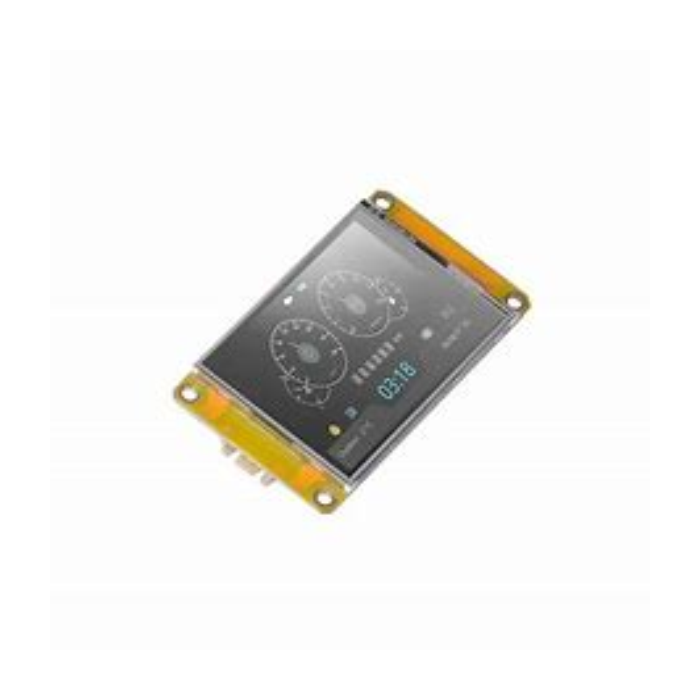

Nextion NX3224F024 2.4-Inch Discovery Series Resistive HMI Touch Display
Description:
- The Nextion NX3224F024 is a 2.4-inch HMI touch display module from the Discovery Series.
- includes an inbuilt STM32GO ARM® Cortex®-M0+ 64MHz MCU Processor and a resistive HMI touchscreen.
- The Fonts Creator supports a wide range of character encodings.
- It includes the Nextion Editor, which allows you to create intuitive and excellent touch user interfaces.
- provides an ideal HMI solution with a low and decreasing learning curve.
- The Nextion NX3224F024 2.4-Inch Discovery Series Resistive HMI Touch Display is a Discovery series resistive HMI touchscreen that does not include an enclosure.
- The STM32GO ARM Cortex-M0+ 64MHz MCU processor onboard powers this 2.4" LCD-TFT HMI display.
- It is flexible and adaptable due to its font generator, which offers a large variety of character encodings.
- Users will have a reduced learning curve because of the device's text-based instruction set. With support for more than 15 WYSIWYG components, it is an extremely effective and economical HMI system.
- The Nextion Basic Series, Enhanced Series, and Intelligent Series can all be used with the free human-machine interface (HMI) GUI development tool Nextion Editor.
Specifications:
- Resolution: 320 x 240.
- Touch Panel: RTP.
- MCU: 64 MHz
- Flash: 4 MB.
- SRAM: 3584 Byte.
- Input Power: DC 5V 500 mA.
- USART Port: XH2.54 4P.
- Storage Temperature: -30 ~ 85 °C.
- Working Temperature: -20 ~ 70 °C.
SKU | DIS-0028-O01 |
---|
