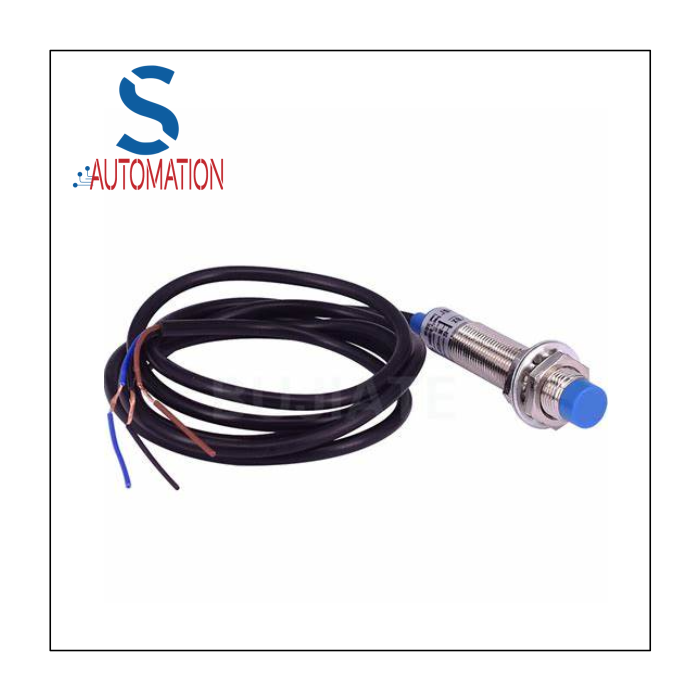

NPN LJ12A3-4-ZBX Inductive switch

ZAR 52.67 ZAR 45.80

In stock

SKU

3DP-0139-P01

NPN LJ12A3-4-ZBX Inductive switch:

The NPN LJ12A3-4-ZBX Inductive Switch is a type of proximity sensor that detects the presence of metallic objects without physical contact.
It works using inductive sensing technology, which generates an electromagnetic field and detects changes when a conductive object enters that field.
This NPN type switch provides a low signal output when an object is detected, making it suitable for position sensing or limit switches in various industrial and 3D printing applications.
It is commonly used in automated systems, including 3D printers for detecting the position of moving parts like the print bed or extruder assembly.

Model: LJ12A3-4-ZBX
Output Type: NPN (Normally Open) (low output when triggered)
Sensing Distance: 4 mm
Operating Voltage: 6V to 36V DC
Current Rating: 200 mA maximum
Load Type: Suitable for resistive loads
Housing Material: Metal (stainless steel)
Sensor Type: Inductive proximity switch
Connection: 3-wire (Brown: Positive, Blue: Negative, Black: Output)
Sensing Object: Detects metallic objects
Response Time: 2 milliseconds
Temperature Range: -25°C to 70°C
Applications: Limit switches for 3D printers (e.g., bed leveling, end-stop detection), Position sensing in robotics, CNC machines, and industrial automation, Safety applications where physical contact should be avoided
Non-contact Detection: No physical contact needed with the object, reducing wear and tear
High Durability: Designed for use in harsh environments, resistant to dust, oil, and vibration
Fast Response: Detects objects in milliseconds, providing quick feedback for automated systems
Wide Voltage Range: Can operate within a broad voltage range, making it versatile for different applications
