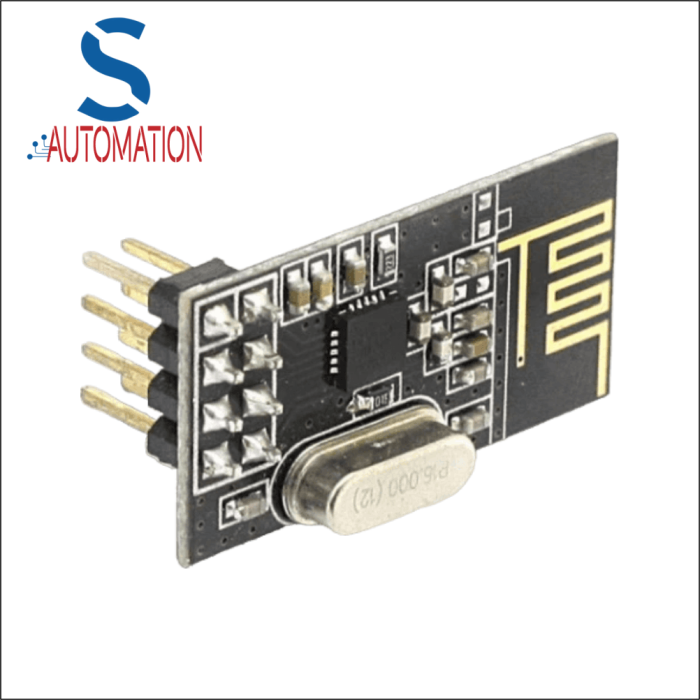

NRF24L01+ Transceiver Module
NRF24L01+ Transceiver Module
The NRF24L01+ 2.4GHz Wireless Transceiver Module is a highly functional and lightweight transceiver that may be used to add Wi-Fi capabilities to nearly any function in a variety of applications. This transceiver can connect to and communicate with nearly any kind of electronic component, from adding Wi-Fi to computer accessories like a mouse, keyboards, or headphones to incorporating remote access on a laptop at work.
Specifications:
- Band Operation: Worldwide 2.4GHz ISM
- RF Channels: 126
- On Air Data Rates: 250kbps, 1Mbps and 2Mbps
- Output Power: 11.3mA TX at 0dBm
- Programmable Output Power: 0, -6, -12, 18dBm
- Voltage Regulator: On-Chip
- Voltage Supply Range: 1.9V – 3.6V
- Packet Handling: Automatic
- Data Handling: 6 Data Pipe MultiCeiverTM
- Drop-in Compatibility: nRF24L01
- On-Air Compatibility: 250kbps and 1Mbps: nRF2401A, nRF2402, nRF24E1 and nRF24E2
- Crystal Oscillator: ±60ppm 16MHz Crystal
- QFN Package: Compact 20-pin 4x4mm
SKU | ARD-0008-G01 |
---|
