Specifications:

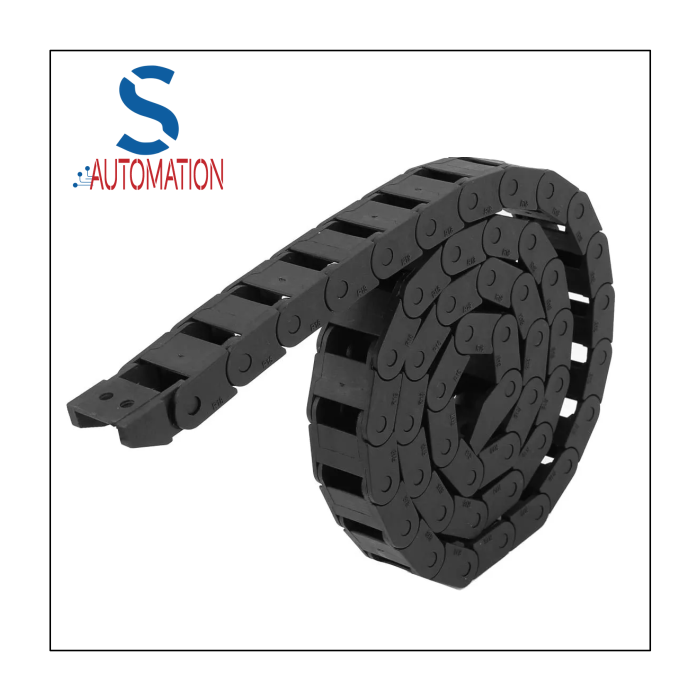

• Type: Cable carrier (also known as drag chain or energy chain).
• Material: High-strength nylon plastic (PA66), offering durability, flexibility, and resistance to wear and abrasion.
• Internal dimensions:
• Width: 10 mm.
• Height: 10 mm.
• External dimensions:
• Width: Approximately 14 mm.
• Height: Approximately 18mm.
• Structure: Modular, interlocking links.
• Flexibility: Designed for continuous bending and repetitive motion, protecting cables from wear and ensuring smooth operation.
• Load Capacity: Best suited for light loads, such as signal wires or small power cables.
• Temperature Resistance: Operational range: -40°C to 100°C.
• Chemical Resistance: Resistant to oils, greases, and many industrial chemicals.
• Applications: Commonly used in small 3D printers, desktop CNC machines, and robotics to protect and manage thin cables or wires.
• Prevents snagging, tangling, and abrasion, extending the lifespan of cables in dynamic systems.
