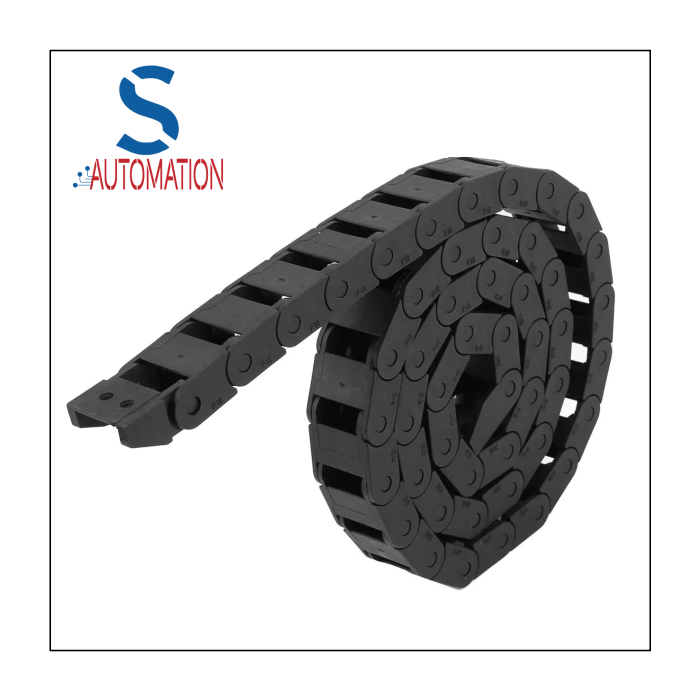

Specifications:

• Internal dimensions:
• Width: 10 mm.
• Height: 15 mm.
• External dimensions:
• Width: Approximately 14 mm.
• Height: Approximately 20 mm.
• Bending radius: Typically available with options such as R18 mm, R28 mm, or R38 mm (depending on the model).
• Structure: Modular interlocking links for customizable length.
• Available in openable or closed versions for easy cable or hose installation and maintenance.
• Flexibility: Designed for continuous bending and repetitive motion, ensuring cables remain protected.
• Load Capacity: Suitable for carrying light loads of cables or hoses, ideal for smaller 3D printers or CNC machines.
• Temperature Resistance: Operational range: -40°C to 100°C
• Chemical Resistance: Resistant to oils, greases, and most industrial chemicals.
• Applications: Used in 3D printers, small CNC machines, robotic arms, and other automated equipment.
• Prevents tangling, snagging, and abrasion of cables, extending their service life.
