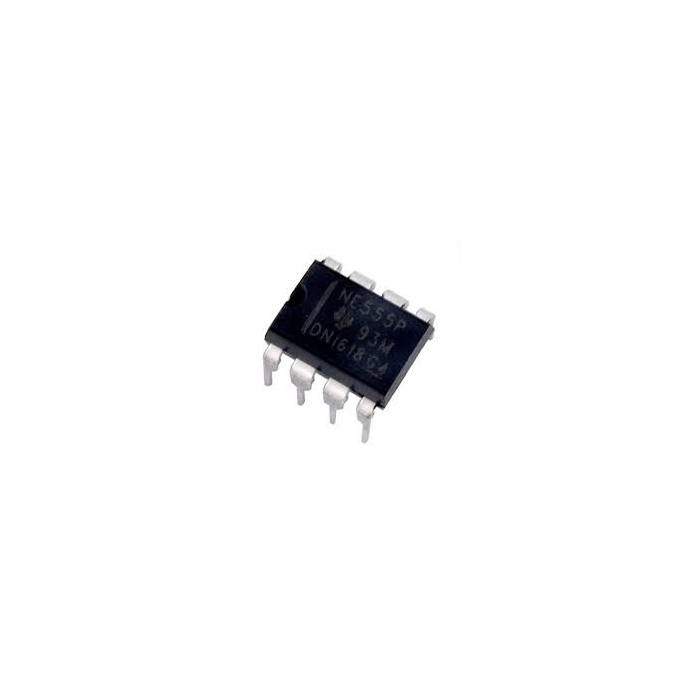

NE555P ONSD-31148 Timer Single PDIP 8
Description:
- The NE555P is a widely used precision timer integrated circuit, known for its adaptability and robustness in both basic and sophisticated timing applications.
- It functions as both a monostable (one-shot pulse) and an astable (free running) multivibrator, making it suitable for a variety of applications.
General Specifications:
- Function: Precision Timer (Single).
- Supply Voltage: 4.5V to 15V.
- Output Current: 200 mA.
- Operating Temperature Range: 0°C to 70°C.
- Package Type: 8-pin Plastic Dual In-line Package (PDIP 8).
Electrical Characteristics:
- Supply Current: 10 mA (Typical) at VCC = 5V.
- Timing Interval: 10 µs (Min) to Hours (Max).
- Output Voltage:
- High: 3.1V (Min) at VCC = 5V, IO = -10 mA.
- Low: 0.2V (Max) at VCC = 5V, IO = 10 mA.
- Threshold Voltage: 2/3 VCC.
- Trigger Voltage: 1/3 VCC.
- Discharge Voltage:
- High: 0.2V (Max) at VCC = 5V, IO = 10 mA.
- Low: 0.75V (Min) at VCC = 5V, IO = -10 mA.
- Control Voltage: 1.67V (Typical) at VCC = 5V.
- Rise Time: 100 ns (Max).
- Fall Time: 100 ns (Max).
Pin Configuration:
- Pin 1: Ground (GND).
- Pin 2: Trigger (TRIG).
- Pin 3: Output (OUT).
- Pin 4: Reset (RESET).
- Pin 5: Control Voltage (CV).
- Pin 6: Threshold (THRES).
- Pin 7: Discharge (DISCH).
- Pin 8: Supply Voltage (VCC).
