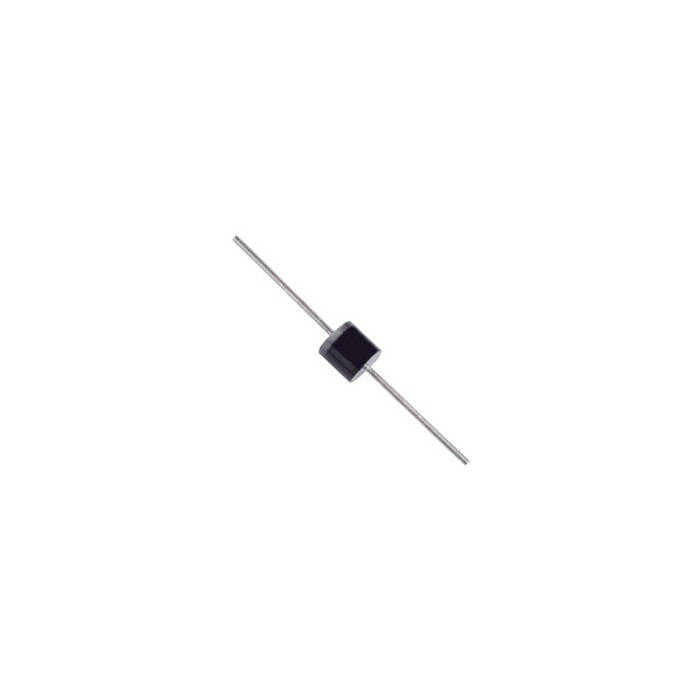

P600M Rectifier 1000V 2-PIN R6
P600M Rectifier 1000V 2-PIN R6:
The P600M is a high-voltage, general-purpose rectifier diode designed for converting AC to DC in power supplies and other high-voltage rectification applications. Its R6 package provides a robust and reliable solution for industrial and consumer electronics.
Specifications:
- Peak Reverse Voltage (VR): 1000V
- Average Rectified Current (IF(AV)): 6A
- Surge Current (IFSM): 400A (8.3 ms single half sine wave)
- Forward Voltage Drop (VF): 1.1V at 6A
- Reverse Recovery Time (trr): ≤2 µs
- Operating Temperature Range: -65°C to +150°C
- Storage Temperature Range: -65°C to +150°C
- Package Type: R6 (axial, 2-pin)
