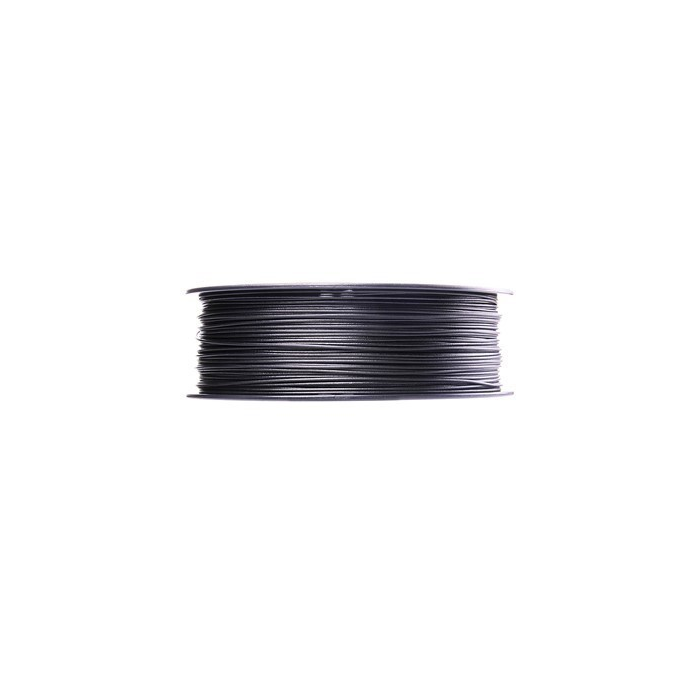

PAHT-CF Filament 1.75mm Natural1kg/Roll
Special Price
ZAR 1,244.32
ZAR 1,082.02
Regular Price
ZAR 1,463.90
In stock
SKU
3DP-0234-DS1
Description:
- The PAHT-CF Filament 1.75mm Natural 1kg/Roll is a high-performance 3D printing material intended for applications that require outstanding strength and durability.
- This filament, created by eSUN and LUVOCOM, is based on PA6 (Polyamide 6) and reinforced with 15% high-rigidity carbon fibre.
- This filament is ideal for making strong, durable objects that can tolerate high temperatures and mechanical stress.
Specifications:
- Material: PA6 with 15% high-rigidity carbon fiber.
- Filament Diameter: 1.75mm.
- Colour: Natural.
- Weight: 1kg per roll.
- Density: 1.06 g/cm³.
- Glass Transition Temperature: 70°C.
- Vicat Softening Point: 220°C.
- Melt Flow Index: 14.4 ± 2.0 g/10min (280°C).
- Tensile Strength (X-Y): 88 ± 7 MPa.
- Tensile Strength (Z): 64 ± 3 MPa.
- Elongation at Break (X-Y): 10.4 ± 0.7%.
- Elongation at Break (Z): 5.2 ± 0.5%.
- Impact Strength (X-Y): 57.5 ± 3.4 kJ/m².
- Impact Strength (Z): 13.3 ± 0.8 kJ/m².
- Continuous Use Temperature: Up to 150°C.
- Short-Term Use Temperature: Up to 180°C.
- Surface Resistance: < 102Ω.
- Applications: Prototyping, functional parts, machinery, automotive parts, aerospace, textiles, and more.
