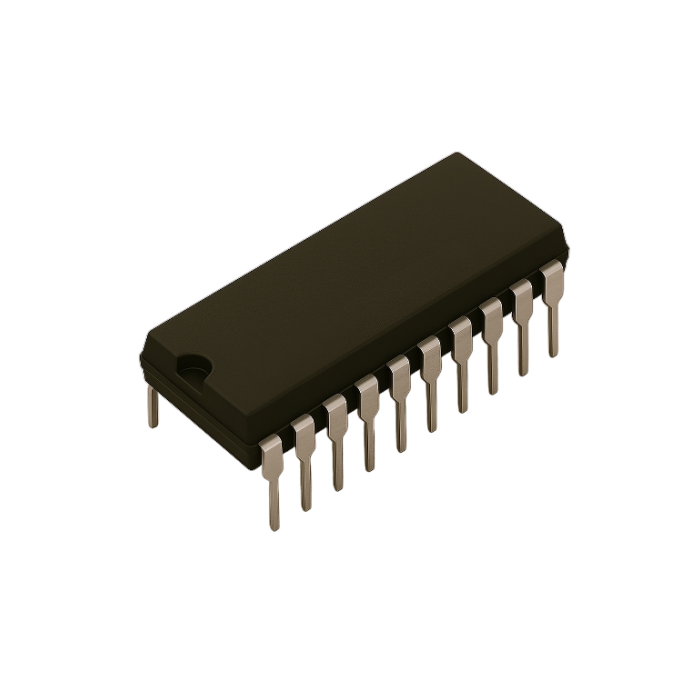

PAL16L8ACN Integrated Circuit 20Pin
Description:
The PAL16L8ACN is a classic Programmable Array Logic (PAL) device developed by AMD and MMI, widely used in the 1980s and 1990s for implementing custom logic functions in digital systems. It belongs to the PAL16L8 family and features a fixed OR array with a programmable AND array, making it ideal for creating combinational logic circuits with high speed and reliability.
Specifications:
- Function: Simple Programmable Logic Device (SPLD)
- Architecture: 16 inputs, 8 outputs (combinational or registered)
- Logic Type: TTL-compatible
- Programming Type: Fuse-link (one-time programmable)
- Propagation Delay: ~25 ns
- Output Type: 3-state TTL
- Supply Voltage: 5 V ±10%
- Package: 20-pin DIP (PDIP20)
- Operating Temperature Range: 0°C to +75°C
| SKU | INC-0389-C09 |
|---|
