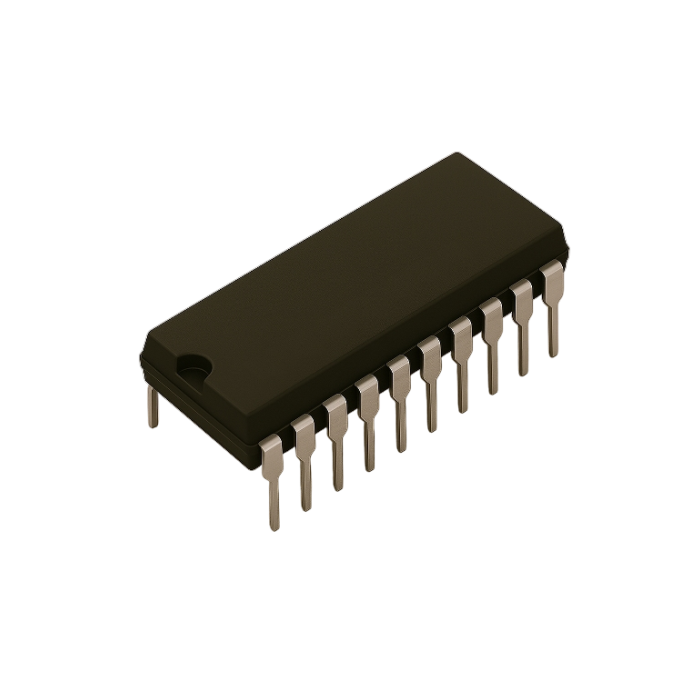

PAL20LACNS Integrated Circuit 20Pin
Description:
The PAL20LACNS is a member of the PAL (Programmable Array Logic) family, specifically a 20-pin low-power combinational logic device. It was developed by MMI (Monolithic Memories Inc.) and later produced by AMD and others. This chip is a one-time programmable (OTP) logic device, meaning it uses fuse-link technology to permanently define custom logic functions.
Specifications:
- Function: Programmable Array Logic
- Architecture: 20-pin DIP,10 inputs and 8 outputs
- Logic Type: TTL-compatible
- Programming Type: Fuse-link (OTP)
- Output Type: 3-state TTL
- Propagation Delay: ~25 ns
- Supply Voltage: 5 V ±10%
- Power Consumption: Low-power variant
- Package: 20-pin DIP (Plastic Dual In-line Package)
- Operating Temperature Range: 0°C to +75°C
| SKU | INC-0393-C09 |
|---|
