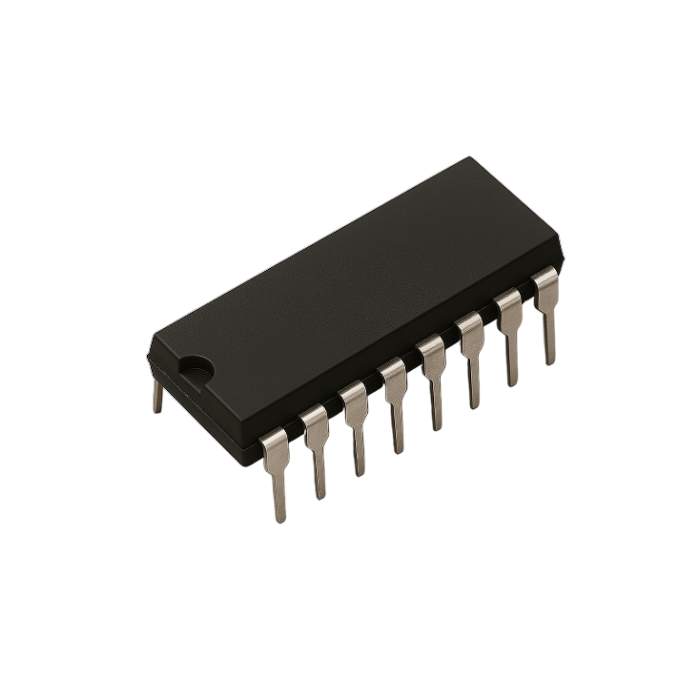

PC74HCT138N Integrated Circuit 16Pin

ZAR 7.46 ZAR 6.49

In stock

SKU

INC-0348-C09

Description:

The PC74HCT138N is a high-speed CMOS 3-to-8 line decoder/demultiplexer with active-low outputs, designed by Philips (now NXP Semiconductors). It’s TTL-compatible and ideal for memory address decoding, data routing, and logic-level control in microprocessor systems. With three binary inputs and three enable inputs, it can selectively activate one of eight outputs—making it a versatile tool for expanding addressable I/O or memory space.

Specifications:

Function: 3-to-8 line decoder/demultiplexer
Package: 16-pin DIP (Dual In-line Package)
Logic Family: HCT (High-speed CMOS, TTL-compatible)
Inputs: 3 binary address inputs (A0–A2), 3 enable inputs (G1, G2A, G2B)
Outputs: 8 active-low outputs (Y0–Y7)
Supply Voltage: 4.5V to 5.5V
Input Compatibility: TTL-level inputs
Propagation Delay: ~15ns
Power Consumption: Low (CMOS efficiency)
Operating Temperature: –40°C to +85°C (industrial grade)
Applications:
-Memory address decoding
-Data routing and demultiplexing
-Logic-level control
-Microprocessor system expansion
