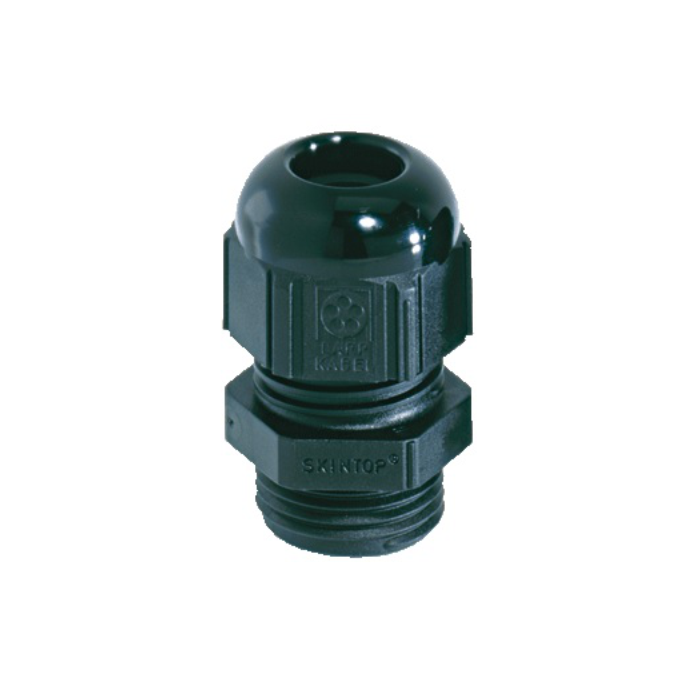

PG13.5 20.4MM PVC Compression Gland Black
Description:
- The PG13.5 20.4MM PVC Compression Gland Black is designed to provide a durable and dependable alternative for terminating and safeguarding wires.
- It is appropriate for use in settings that require dust, moisture, and mechanical stress resistance.
Specifications:
- Material: High-quality PVC.
- Thread Diameter: PG13.5 with an outer diameter of 20.4 mm.
- Compress Area: Suitable for cables with diameters ranging from 6 mm to 12 mm.
- Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
- Weight: Approximately 0.024 kg (24 grams).
- Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
- Flame Protection: Glow wire test 750°C according to EN60695-2-11.
- Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
- Colour: Black.
- Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
SKU | GLA-0013-H09 |
---|
