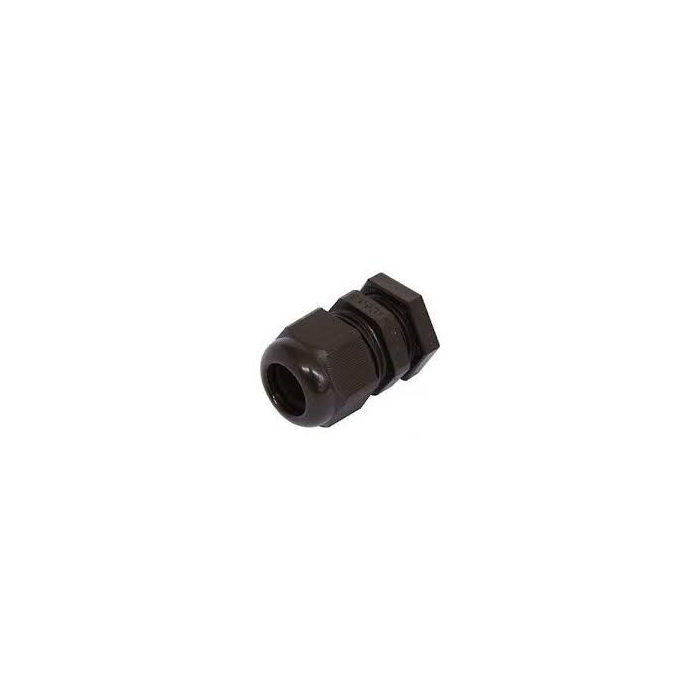

PG7 12.5mm PVC Compression Gland Black

ZAR 5.08 ZAR 4.42
Out of stock
SKU
GLA-0017-H09

Description:

  • The PG7 12.5MM PVC Compression Gland Black is a dependable component used to hold and protect cables in a variety of electrical setups.
  • It is made of high-quality PVC, which provides superior insulation and protection.
  • The gland has a thread diameter of PG7 and an outside diameter of 12.5 mm, making it ideal for cables ranging in diameter from 3 mm to 6.5 mm.
  • It has a compression mechanism that creates a tight and secure fit around the cable, resulting in effective sealing and strain relief.
  • The gland is certified IP68 to EN 60520 and IP69K to DIN 40 050-T9, providing excellent dust and water resistance.

Specifications:

  • Material: High-quality PVC.
  • Thread Diameter: PG7 with an outer diameter of 12.5 mm.
  • Compress Area: Suitable for cables with diameters ranging from 3 mm to 6.5 mm.
  • Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
  • Weight: Approximately 0.024 kg (24 grams).
  • Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
  • Flame Protection: Glow wire test 750°C according to EN60695-2-11.
  • Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
  • Colour: Black.
  • Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
