POWER CABLE WITH 4-WAY OPEN WIRE
TECHNICAL DATA
GENERAL
Input connector: 4-way open wire
Output connector: 4-pin, 3 mm pitch
Cable: 4 x 0.5 mm² (20 AWG)
Total Length: 1500 mm
RoHS ✓
-
Maximum Voltage: 300 V
-
Max UL-listed Voltage: 300 V
-
Max DC Current Per Contact: 4.5 A
-
Temperature Range: -20 °C to 80 °C
-
Cable Material Isolation Voltage kV: 1.5 kV
Write Your Own Review
Related Products
Loading...
Bestsellers

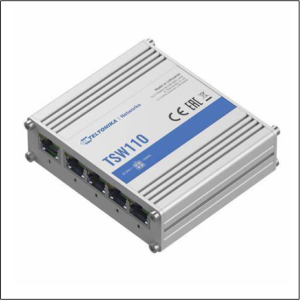

10/100/1000 5 Port Switch
