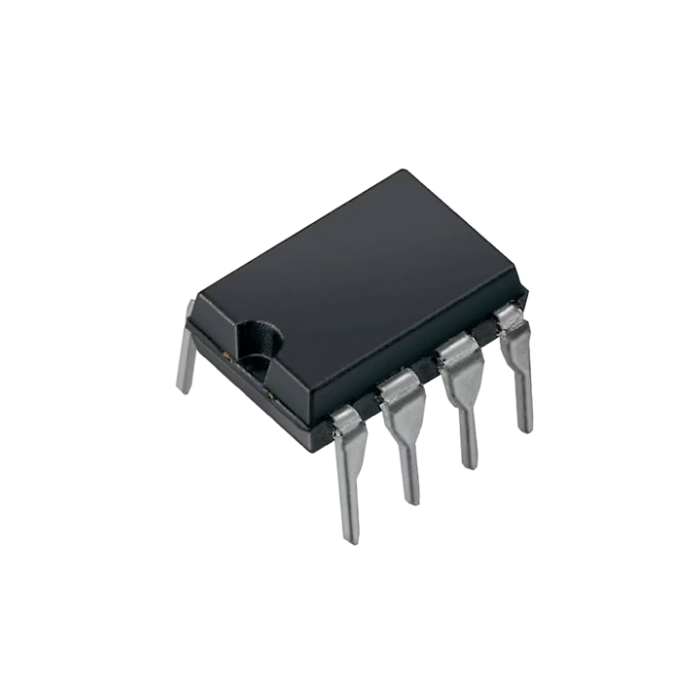

RC555NB Integrated Circuit 8Pin

ZAR 7.88 ZAR 6.85

In stock

SKU

INC-0364-C09

Description:

The RC555NB is a classic monolithic timing circuit, functionally equivalent to the popular 555 timer IC. Designed for precision timing and oscillator applications, it offers stable operation across a wide range of frequencies and duty cycles. This IC is capable of generating accurate time delays or pulse-width modulation using just a resistor and capacitor, making it a staple in analog and digital timing circuits. Its versatility and simplicity have made it a go-to component in everything from LED flashers to tone generators and delay circuits.

Specifications:

Function: Timer / Delay generator
Configuration: Monolithic, externally compensated
Output Type: Positive output, resettable
Input Circuit Pattern: 4-input
Package Type: Dual In-line Package (DIP)
Body Dimensions:
-Length: 0.365" to 0.375"
-Width: 0.245" to 0.252"
-Height: 0.115" to 0.125"
Power Dissipation (Max): 600 mW
Propagation Delay: 100 ns (low-to-high and high-to-low)
Operating Temperature Range: 0°C to +70°C
Storage Temperature Range: –65°C to +150°C
Terminal Surface Treatment: Solder
Enclosure Material: Plastic
