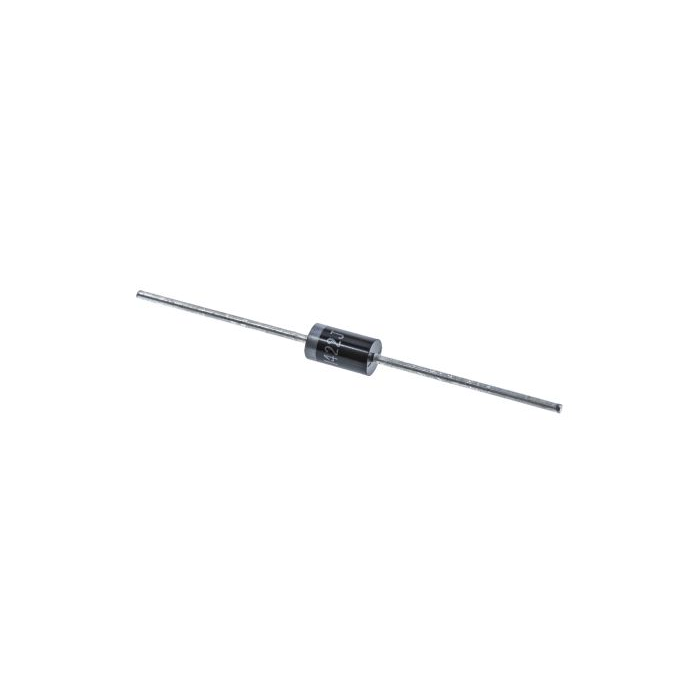

Rectifier Diode 1000V 3A DO27
Maximum Continuous Forward Current:3A
Peak Reverse Repetitive Voltage:1000V
Maximum Forward Voltage Drop:1.2V
Peak Non-Repetitive Forward Surge Current:200A
Peak Reverse Current:5µA
Minimum Operating Temperature:-50 °C
Maximum Operating Temperature:+150 °C
From Vishay, 1N5400-1N5408 are a range of general purpose rectifiers. With a moulded epoxy body, this range of rectifiers have a DO-201AD package size.
Features and Benefits:
š‚ Capable of managing high forward surges.
š‚ Low forward voltage drop.
š‚ Low leakage current.
š‚ Solder dip at +245 °C for a maximum of 10 seconds.
š‚ Flame retardant to UL94 V-O.
š‚ > 500 ns standard recovery.
š‚ Wide operating temperature range of -50 °C to +150 °C.
š‚ Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102.
š‚ A coloured band indicates the cathode end.
