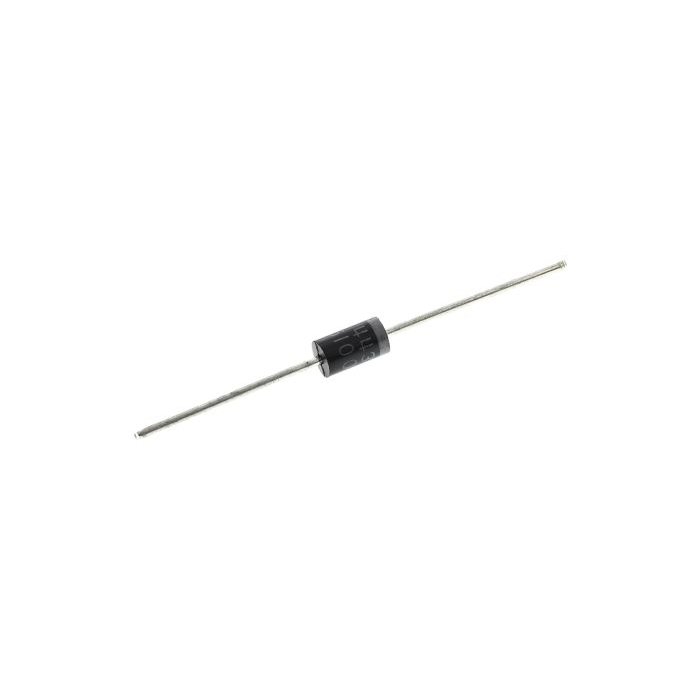

Rectifier Diode 400V 3A DO27
Rectifier Diode 400V 3A DO27:
The Rectifier Diode 400V 3A in a DO-27 package is designed for high-current rectification in power circuits. With a peak inverse voltage of 400V and a maximum forward current rating of 3A, it is suitable for use in power supplies, motor control circuits, and other applications requiring reliable, high-current rectification.
Specifications:
- Peak Inverse Voltage (PIV): 400 V
- Average Forward Current (I_F(av)): 3 A
- Forward Voltage (V_F): 1.1 V (at I_F = 3 A)
- Reverse Leakage Current (I_R): 5 µA (at V_R = 400 V)
- Reverse Recovery Time (t_rr): 100 ns
- Package Type: DO-27
- Operating Temperature Range: -65°C to 150°C
- Applications: Power rectification, power supplies, motor control circuits, and voltage regulation
