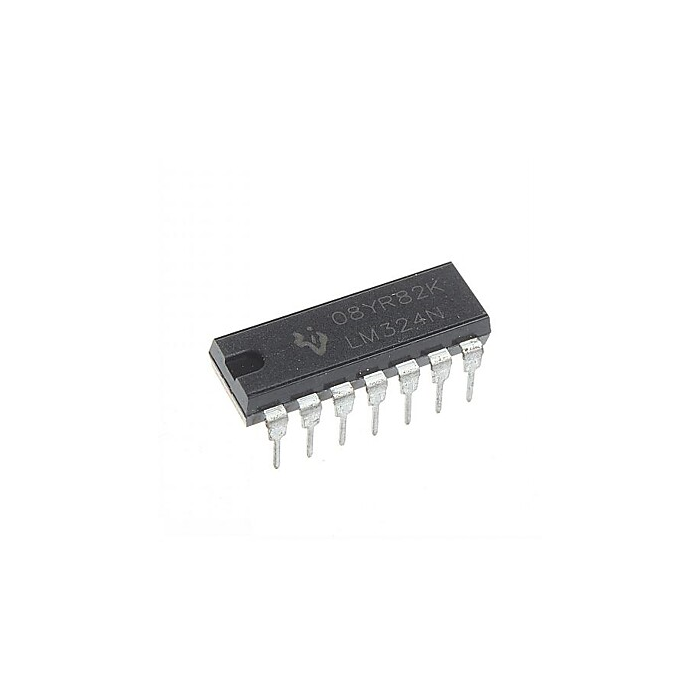

Regulator LM324N - DIP14
- Internally frequency compensated for unity gain
- Large DC voltage gain: 100dB
- Wide power supply range:
- LM324/LM324A: 3V~32V (or ‚±1.5 ~ 15V)
- LM2902/LM2902A: 3V~26V (or ‚±1.5V ~ 13V)
- Input common-mode voltage range includes ground
- Large output voltage swing: 0V to VCC-1.5V
- Power drain suitable for battery operation.
These are low?cost, quad operational amplifiers with true differential inputsThey have several distinct advantages over standard operational amplifier types in single supply applicationsThe output voltage range also includes the negative power supply voltageShort circuited protected outputsTrue differential input stageLarge Voltage Gain: 100 dBWide power supply range: 3.0V to 32V (‚¡‚1.5 to 16V)Input Offset Voltage: 1.5mV (typical value)Input Offset Current: 3.0nA (typical value)Input Bias Current: 40nA (typical value)Input common-mode voltage range includes groundWorking Current: 1.0mA (typical value)Working Temperature: 0 deg C to +70 deg CPackage: DIP-14Package Included:10 x LM324N AmplifierKeywords: LM324N, operational amplifier
