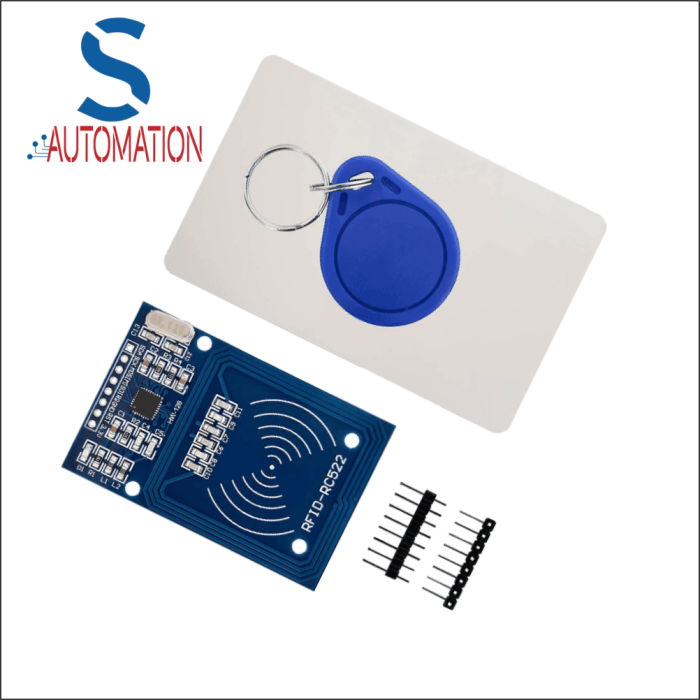

RFID Module
RFID Module
- Contactless reader and writer card chip, as well as the unique combination of functions and applications in the new technologies of automation and artificial intelligence.
- Powered by the reader's power source, thus no batteries are required.
- This implies that tags have the potential to be extremely small, even small enough to be integrated into tiny devices.
Specifications:
- Current :13-26mA / DC 3.3V
- Idle Current :10-13mA / DC 3.3V
- Sleep current: 80uA
- Peak current: 30mA
- Operating Frequency: 13.56MHz
- Supported card types: S50, S70, UltraLight, Pro, Desfire
- Product Physical Characteristics: Dimensions: 40mm × 60mm
- Environmental Operating temperature: -20-80 degrees Celsius
- Environment Storage temperature: -40-85 degrees Celsius
- Relative Humidity: 5% -95%
- Data Transfer Rate: Max. 10Mbit / s
