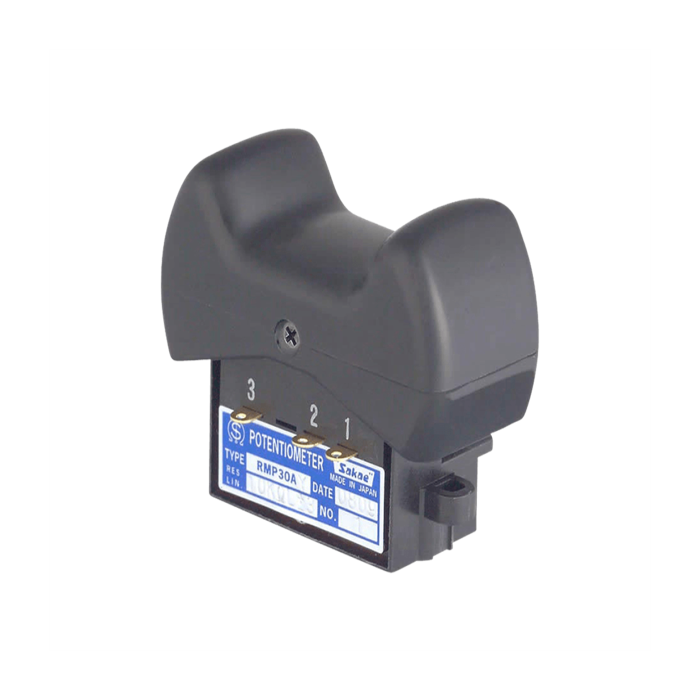

RMP30H 1-turn Potentiometer Hall Effect IC
Description:
- The RMP30H 1-turn Potentiometer Hall Effect IC is a flexible component that allows for precise control of resistance in electrical circuits.
- This potentiometer has a seesaw-motion design with a Hall effect IC resistive element, resulting in smooth and reliable performance.
- It is utilized for industrial joysticks and position sensors.
Specifications:
- Model: RMP30H.
- Resistance Rating: 10 KΩ.
- Applied Voltage: 5V DC ±10%.
- Current Consumption: Approx. 7mA (Single output), Approx. 14mA (Dual output).
- Dielectric Strength: 1 minute at 250 V AC.
- Effective Electrical Angle: 30° ±5°.
- Independent Linearity Tolerance: ±3% FS.
- Insulation Resistance: Over 100MΩ at 250V DC.
- Load Resistance: 10 KΩ min.
- Operating Angle Range: ±15° ~ ±19° from centre position.
- Output Voltage Range: Approx. 10% ~ 90% Vin.
- Protection Grade: IP65.
- Operating Temperature Range: -20°C to +60°C.
- Life Expectancy: 5,000,000 operations.
