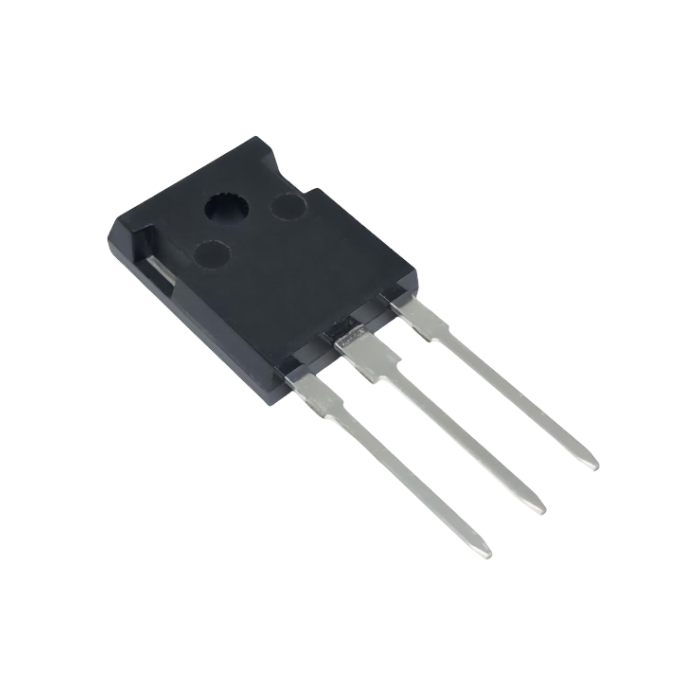

RURG3040C Diode

ZAR 0.00 ZAR 0.00

In stock

SKU

DIO-0099-B02

Description:

The RURG3040C is a high-performance ultrafast recovery diode designed for use in power switching applications such as freewheeling, clamping, and rectification in SMPS and motor control systems. With a soft recovery characteristic and low stored charge, it minimizes electrical noise and switching losses, making it ideal for high-frequency environments. Its robust TO-247 package and avalanche-rated construction ensure durability under demanding conditions.

Specifications:

Type: Ultrafast Soft Recovery Diode
Package: TO-247
Maximum Reverse Voltage (V_RRM): 400V
Average Forward Current (I_F(AV)): 30A (per leg at T_C = 130°C)
Peak Surge Current (I_FSM): 325A (non-repetitive, half-wave 60Hz)
Reverse Recovery Time (t_rr): <55ns
Forward Voltage Drop (V_F):
- ~1.3V at 30A, T_C = 25°C
- ~1.5V at 30A, T_C = 150°C
Power Dissipation (P_D): 125W
Avalanche Energy (E_AVL): 20mJ
Operating Temperature Range: –65°C to +175°C
Construction: Silicon nitride passivated, ion-implanted epitaxial planar
Applications: Switching power supplies, motor drives, general-purpose power switching
