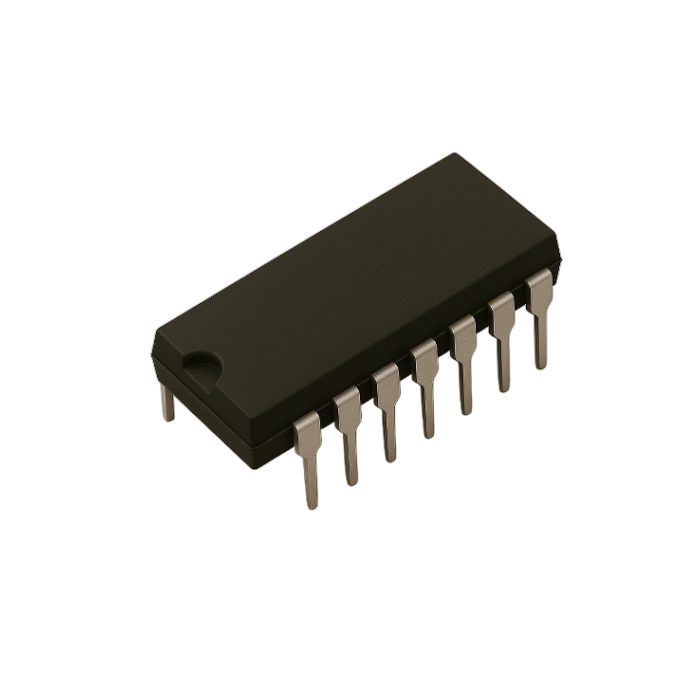

SCL4013BE Integrated Circuit 14Pin
Description:
The SCL4013BE is a dual D-type flip-flop with set, reset, and complementary outputs, built using CMOS technology. It’s part of the 4000-series logic family and is functionally equivalent to the CD4013B, making it a staple in digital logic design for applications like frequency division, data storage, and timing circuits.
Specifications:
- Function: Dual D-type flip-flop with set/reset
- Logic Family: CMOS (4000 series)
- Inputs per Flip-Flop: D (data), CLK (clock), SET, RESET
- Outputs: Q and Q̅ (complementary)
- Triggering: Positive-edge triggered
- Supply Voltage Range: 3 V to 15 V
- Input Type: CMOS-compatible
- Output Type: Push-pull, TTL-compatible
- Propagation Delay: ~100 ns at 10 V
- Package: 14-pin DIP (PDIP-14)
- Operating Temperature: –55°C to +125°C
| SKU | INC-0407-C09 |
|---|
