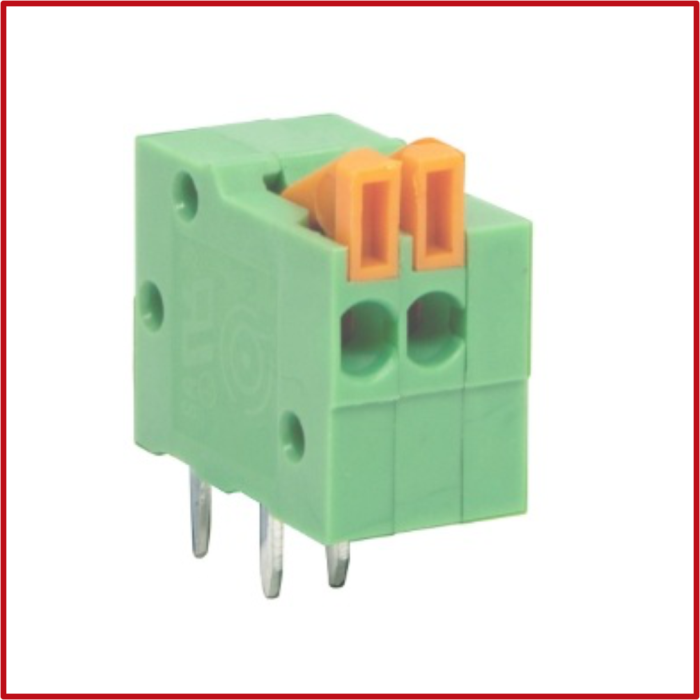

Screwless Push in Fix PCB 2-way connector

ZAR 9.84 ZAR 8.56

Out of stock

SKU

CON2-0002-000

Description:

A screwless push-in fix PCB 2 way connector is a tiny terminal block for printed circuit boards.
It enables for rapid, tool-free wire insertion and secure retention utilizing a spring clamp mechanism.
It is commonly used in control systems, automation, and consumer electronics, where quick assembly and dependable electrical connections are required.
Type: PCB terminal block connector.
Connection method: Screwless, push-in spring clamp.
Ways: Two-way (wire connecting points).
Mounting: Soldered directly to the PCB.
Ease of Use: Wires are inserted directly and secured using spring tension instead of screws.

Pitch (pin spacing): Common options include 2.54 mm, 3.5 mm, 5.0 mm, or 5.08 mm depending on current/voltage requirements.
Current Rating:

Voltage Rating: 150–300 V AC/DC.
Wire Size Supported: 0.2–2.5 mm² (24–12 AWG).
Housing Material: Flame retardant thermoplastic, UL94 V 0 rated.
Contacts: Copper alloy with tin or nickel plating for conductivity and corrosion resistance.
Compliance: CE, UL, and RoHS standards.
